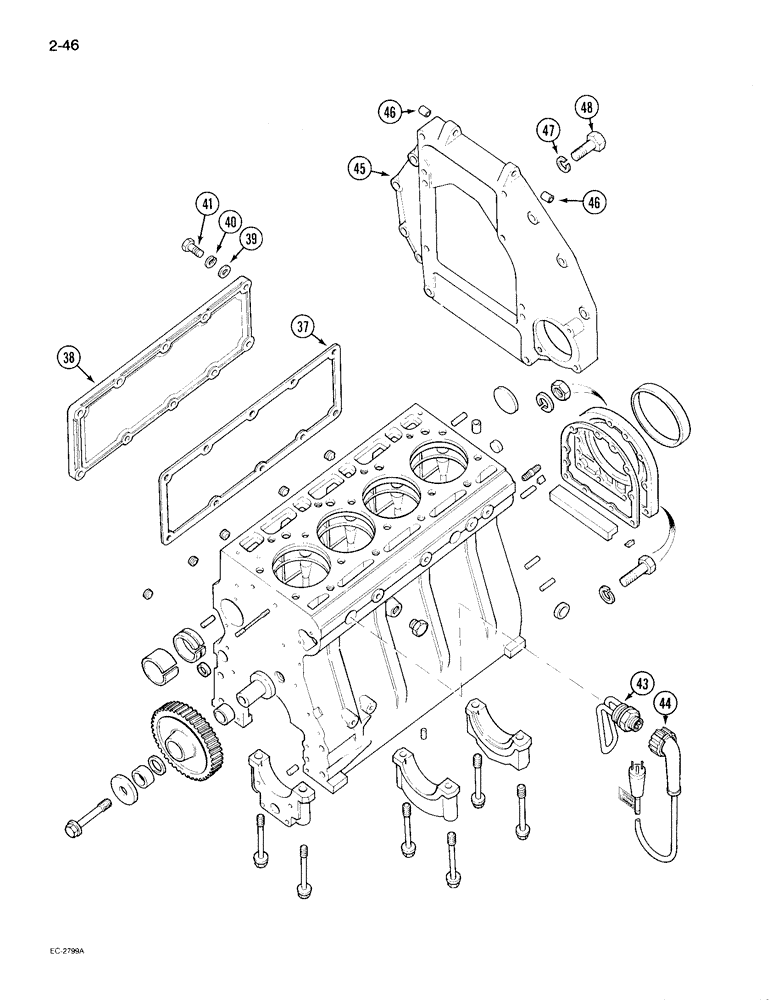

Запчасти Case IH 895 (2-46) - SIDE COVER (02) - ENGINE

37

3055393R4

GASKET,1.5mm Thk

- side cover

1шт.

Part of crankcase gaskets service kit P/N REF

1шт.

38

3132155R2

COVER

- cylinder block side, side cover

1шт.

39

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch, side cover

10шт.

40

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch, side cover

10шт.

41

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Side cover Hex, 5/16"-18 x 5/8", G5, Full Thd

10шт.

REF

INSTRUCTION

KIT - service, crankcase gaskets, Includes: Ref. 37 (See Fig. 2-62)

1шт.

130085C91

PACKAGE

KIT - service, engine heater, Includes: Refs. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

HEATER - engine heater kit

1шт.

44

71150C1

CABLE

WIRE - engine heater kit

1шт.

45

3218638R92

PLATE ASSY.

HOUSING ASSEMBLY - flywheel housing, Includes Ref. 46

1шт.

46

3136060R2

BUSHING

- flywheel housing

2шт.

47

3050128R1

LOCK WASHER

- Lock, Flywheel housing

4шт.

48

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Flywheel housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.
