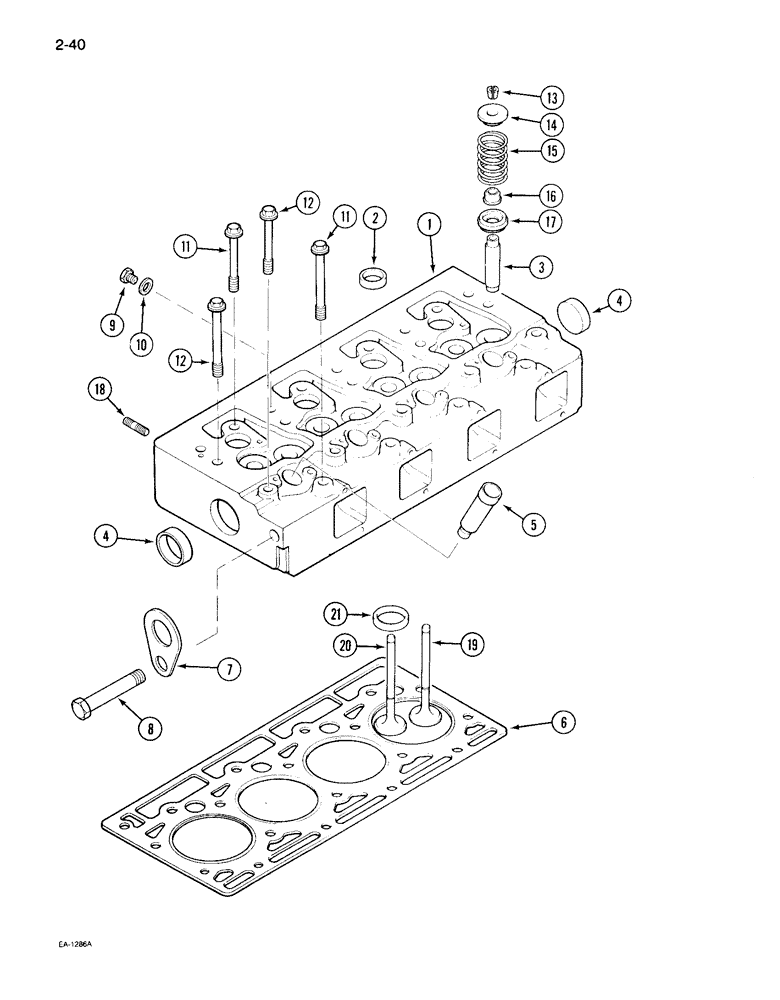

Запчасти Case IH 895 (2-40) - CYLINDER HEAD (02) - ENGINE

1

3055367R97

HEAD (CYLINDER)

HEAD - cylinder, Includes: Refs. 2 - 5

1шт.

2

933537R1

PLUG,M25, Conical

- cup

4шт.

3

3055022R2

VALVE GUIDE

GUIDE - valve stem

8шт.

4

934003R1

PLUG,M52, Conical

- expansion

2шт.

5

3055344R1

SLEEVE

INSERT - nozzle holder

4шт.

6

3228362R2

CYLINDER HEAD GASKET

GASKET - cylinder head

1шт.

Part of cylinder head gaskets service kit P/N REF

1шт.

7

3055370R1

STIRRUP

SHACKLE - engine mounting, front

1шт.

8

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

1шт.

9

934259R1

PLUG,Hex, M10 x 1

1шт.

10

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

11

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- cylinder head

8шт.

12

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - cylinder head

10шт.

13

3055057R91

ROCKER ARM COTTER

KEY - spring lock valve

16шт.

14

3055058R2

SPRING CUP

CAP - valve spring retainer

8шт.

15

3055060R1

SPRING

- valve

8шт.

16

3228677R91

SEAL

KIT - service, valve stem seal

1шт.

Part of cylinder head gaskets service kit P/N REF

1шт.

17

3055059R91

CAP

VALVE - rotator

8шт.

18

3055663R1

STUD

- exhaust manifold, 3/8 NF x 3/8 NC x 38 mm (Without coolant filter)

8шт.

18

3055663R1

STUD

- exhaust manifold, 3/8 NF x 3/8 NC x 38 mm (With coolant filter)

6шт.

18

3228188R1

STUD

- exaust manifold (With coolant filter)

2шт.

19

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

4шт.

3055055R2

OVERSIZE INLET VALVE

1шт.

3132577R1

SEAT, VALVE

1шт.

3144754R1

SEAT, VALVE

1шт.

3144755R1

RING

1шт.

20

3055056R2

STD EXHAUST VALVE

VALVE - exhaust

4шт.

21

3132361R1

INSERT

- seat, exhaust valve, 0.016 inch oversize (0.40 mm)

1шт.

21

3132362R1

VALVE SEAT

INSERT - seat, exhaust valve, 0.006 inch oversize (0.15 mm)

1шт.

REF

INSTRUCTION

KIT - service, cylinder head gaskets, Includes: Ref. 6 and 16 (See Fig. 2-60)

1шт.
