Запчасти Case IH 895 (2-26) - THERMOSTART ATTACHMENT (02) - ENGINE

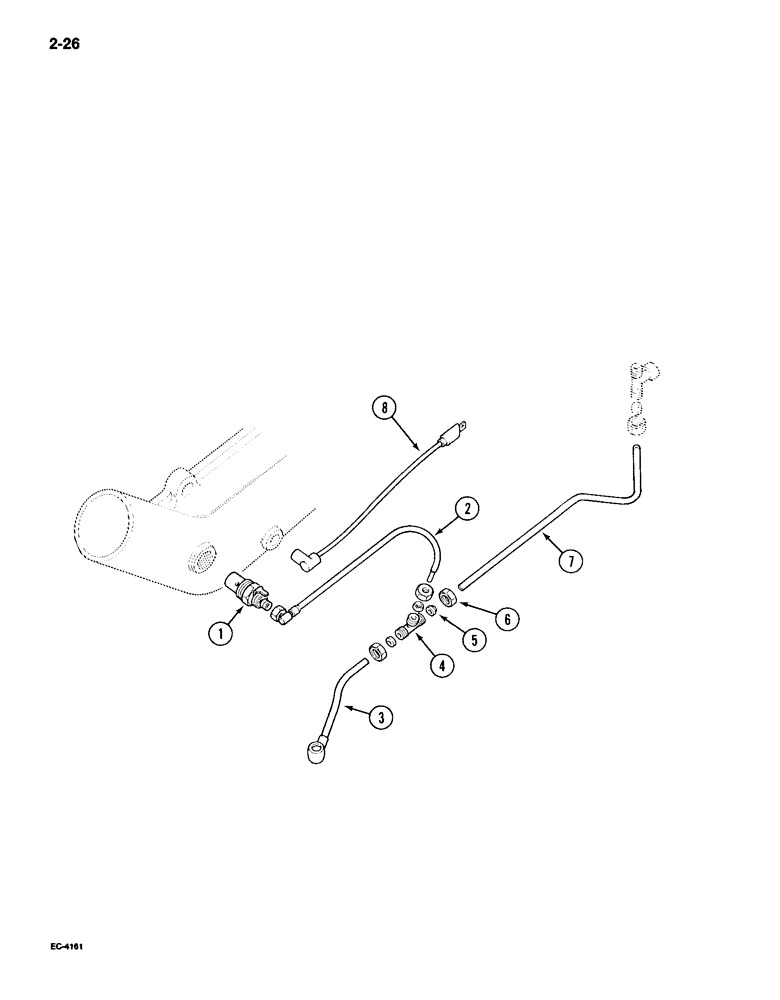

Схема запчастей Case IH 895 - (2-26) - THERMOSTART ATTACHMENT (02) - ENGINE
7
6
4
5
8
2
1
3

Артикул

Название

Примечание

Количество

1

3118299R1

GLOW PLUG

ELEMENT - filter, Type 357-11 (Order K928523), Includes: Seal, P/N K626957

1шт.

K626957

WASHER

SEAL - element (Not shown)

1шт.

2

3118619R1

PIPE

ASSEMBLY - element feed

1шт.

3

1332975C1

PIPE

ASSEMBLY - fuel return, front

1шт.

4

3056138R1

TEE,M8 Tube

UNION - tee

1шт.

5

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression

3шт.

6

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

3шт.

7

1332990C1

PIPE

- fuel return, rear

1шт.

8

1537464C1

ELECTRICAL WIRE

WIRE - ether to thermostart conversion

1шт.

Выбрано товаров: 9
