Запчасти Case IH 895 (2-20) - AIR CLEANER MOUNTING, WITHOUT AIR CONDITIONING (02) - ENGINE

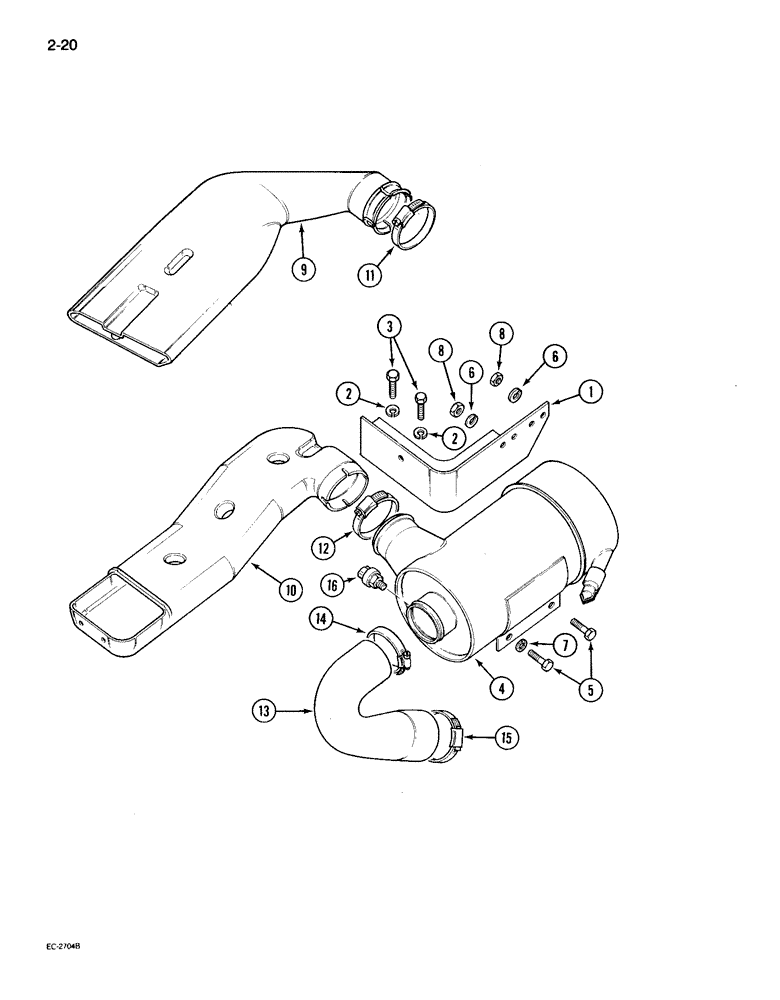

Схема запчастей Case IH 895 - (2-20) - AIR CLEANER MOUNTING, WITHOUT AIR CONDITIONING (02) - ENGINE
6
7
8
10
14
8
16
9
6
1
2
3
4
11
5
13
2
12
15

Артикул

Название

Примечание

Количество

1

3121420R1

SUPPORT

BRACKET - air cleaner mounting, Without air conditioning

1шт.

2

492-11038

LOCK WASHER,3/8"

without air conditioning 3/8"

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Without air conditioning Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

4

3125198R94

AIR CLEANER

CLEANER ASSEMBLY - air (Coopers)(See Fig. 2-22), Without air conditioning

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Without air conditioning Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

6

492-11038

LOCK WASHER,3/8"

without air conditioning 3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch, Without air conditioning

1шт.

8

425-106

NUT,3/8"-16, Cl 5

Without air conditioning 3/8"-16, G5

2шт.

9

529864R1

DUCT

- air inlet, Without air conditioning

1шт.

11

279029R91

HOSE CLAMP,#48, 2.56/3.50 Type F Worm

CLAMP - hose, No. 48 type F, Without air conditioning

1шт.

13

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

- Air Cleaner Outlet, Without air conditioning 69.80 mm ID x 194.30 mm

1шт.

14

539994R1

CLAMP

- hose, No. 350S, Without air conditioning

2шт.

14

1265535C1

CLAMP

- hose, No. 048 (Optional to 539994R1), Without air conditioning

2шт.

16

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator, Without air conditioning

1шт.

Выбрано товаров: 14
