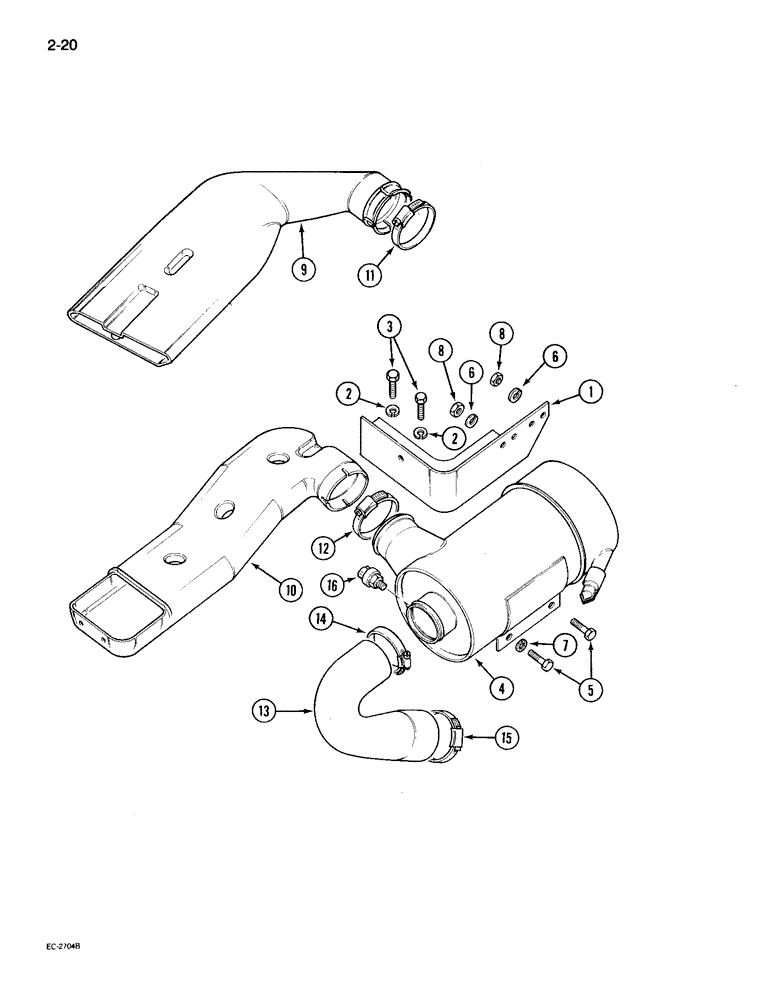

Запчасти Case IH 895 (2-20[1]) - AIR CLEANER MOUNTING, WITH AIR CONDITIONING (02) - ENGINE

1

3121420R1

SUPPORT

BRACKET - air cleaner mounting, With air conditioning

1шт.

2

492-11038

LOCK WASHER,3/8"

with air conditioning 3/8"

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

With air conditioning Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

4

84490C91

AIR CLEANER

CLEANER ASSEMBLY - air, 8 inch (Coopers No. CD2037) (See Fig. 2-24), With air conditioning

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

With air conditioning Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

492-11038

LOCK WASHER,3/8"

with air conditioning 3/8"

2шт.

7

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, external tooth, 3/8 inch, With air conditioning

1шт.

8

425-106

NUT,3/8"-16, Cl 5

With air conditioning 3/8"-16, G5

2шт.

10

99657C1

DUCT

- air inlet, With air conditioning

1шт.

12

985851R91

HOSE CLAMP,#64, 3.56/4.50 Type F Worm

CLAMP - hose, 4-1/2 inch, With air conditioning

1шт.

13

3125121R3

INTAKE AIR HOSE,70.00 mm ID, 88.90 mm ID x 255.00 mm

Air Cleaner Outlet, With air conditioning 70.00 mm ID, 88.90 mm ID x 255.00 mm

1шт.

15

894005H1

CLAMP

- hose No. 400S, With air conditioning

1шт.

15

1265536C1

CLAMP

- hose (Optional to 894005 H1), With air conditioning

1шт.

16

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator, With air conditioning

1шт.
