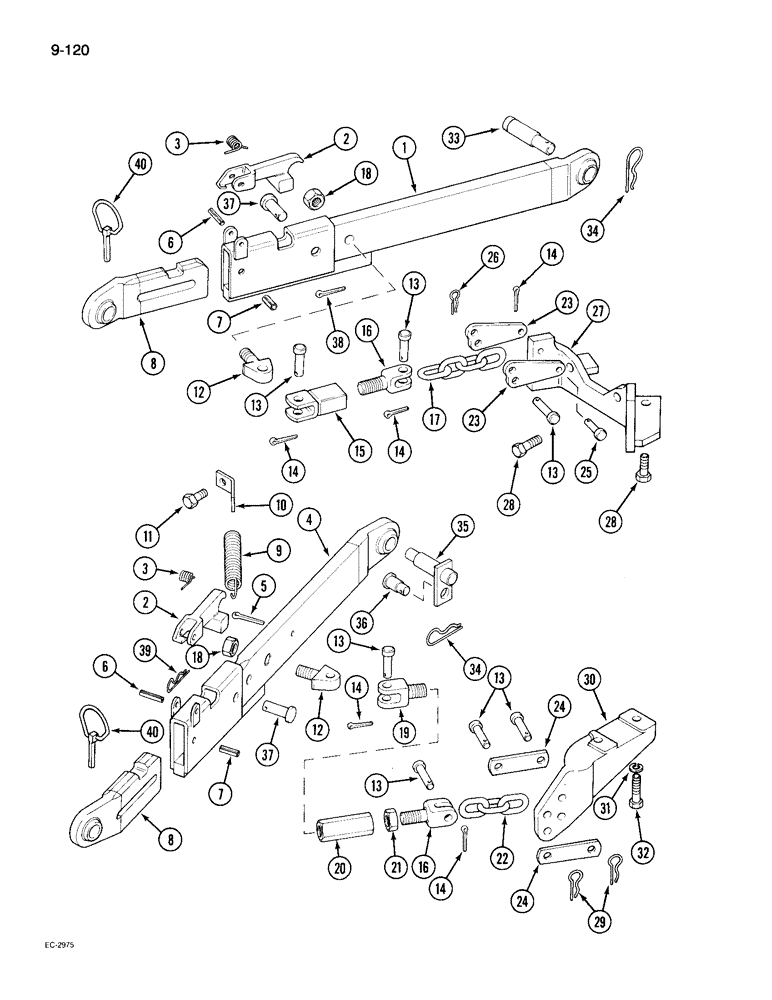

Запчасти Case IH 895 (9-120) - THREE POINT HITCH, TELESCOPIC LOWER LINKS (09) - CHASSIS/ATTACHMENTS

1

527971R1

LOWER LINK

LINK ASSEMBLY - front section, lower right (Inside check chain)

1шт.

1

527970R1

LOWER LINK

LINK ASSEMBLY - front section, lower left (Inside check chain)

1шт.

2

403023R1

LATCH

- lower link

2шт.

3

403024R1

SPRING

- latch return

2шт.

4

3121157R91

LOWER LINK

LINK ASSEMBLY - front section, lower left (Outside check chain), Includes: Ref. 5

1шт.

4

3121158R91

LOWER LINK

LINK ASSEMBLY - front section, lower right (Outside check chain), Includes: Ref. 5

1шт.

5

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

1шт.

6

591261R1

PIN,3/8" x 2 1/8", Coiled

2шт.

7

19903R1

PIN,1/2" x 1 3/4", Coiled

2шт.

8

403020R2

END FITTING

LINK - rear section, lower right

1шт.

8

403019R2

END FITTING

LINK - rear section, lower left

1шт.

9

1970961C1

SPRING

- restraining (Outside check chain)

2шт.

10

3121228R1

BRACKET

- sway chain (Outside check chain)

2шт.

11

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

12

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT - eye, limiter chain

2шт.

13

528112R2

PIN,15.77mm OD x 54.61mm L

- clevis

1шт.

14

32-814

COTTER PIN,1/8" x 7/8"

PIN split (Cotter), 1/8" x 7/8"

1шт.

15

527978R1

YOKE,7/8" - 14

- limiter chain (Inside check chain)

2шт.

16

70622C1

CLEVIS,7/8" - 14

- limiter chain

2шт.

17

403038R1

CHAIN (AG)

CHAIN - limiter (Inside check chain)

2шт.

18

19853R1

LOCK NUT,7/8"-14

NUT - hex lock, 7/8 inch NF

2шт.

19

3118016R1

CLEVIS,7/8" - 14

- limiter chain (Left hand thread) (Outside check chain)

2шт.

20

3116619R1

NUT

- adjusting (Outside check chain)

2шт.

21

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, jam, 7/8 NF

2шт.

22

3113595R1

CHAIN,139.7mm L

CHAIN - limiter (Outside check chain)

2шт.

23

403036R1

LARGE PLATE

STRAP - adjusting (Inside check chain)

4шт.

24

3113594R1

PLATE

STRAP - adjusting (Outside check chain)

4шт.

25

403043R1

PIN

- limiter chain, front (Inside check chain)

2шт.

26

460047R1

CLIP, SPRING

PIN - quick attachable (Inside check chain)

2шт.

27

3123737R1

BRACKET

ASSEMBLY - check chain (Inside check chain)

1шт.

28

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

29

720631R1

LINCH PIN

PIN - quick attach, cotter (Outside check chain)

4шт.

30

529874R1

SUPPORT

BRACKET - check chain, left (Outside check chain)

1шт.

30

529875R1

SUPPORT

BRACKET - check chain, right (Outside check chain)

1шт.

31

92-11062

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

33

67829C1

PIN,28.57mm OD x 108.61mm L

- lower link (Inside check chain)

2шт.

34

538406R1

COTTER PIN

PIN - quick attachable

2шт.

35

3118060R1

PIN

- lower link (Outside check chain)

2шт.

36

3118063R2

PIN,28.57mm OD x 48.3mm L

- lock, lower link (Outside check chain)

2шт.

37

1502066C2

PIVOT PIN

PIN - lift link pivot

2шт.

For longer pin (3-1/4"), order 402645R2. Per quality comments.

1шт.

38

1970960C1

PIN, SPLIT (COTTER)

PIN - cotter, 3/16 x 1-1/4 inch (Inside check chain)

2шт.

39

530049R2

CLIP, SPRING

PIN - quick attachable (Outside check chain)

2шт.

40

1328218C1

LINCH PIN,11mm OD

- quick attachable

2шт.

1092798R3

DECAL

- sway chains (English) (Not illustrated)

1шт.

1092799R3

DECAL

- sway chains (French) (Not illustrated)

1шт.
