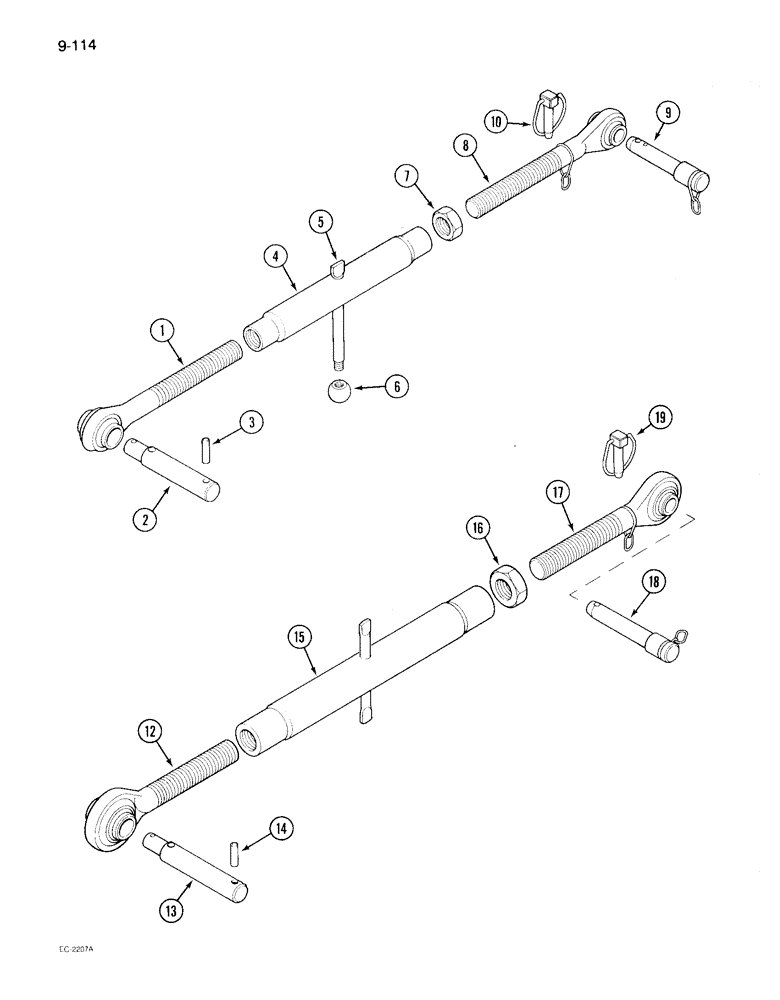

Запчасти Case IH 895 (9-114) - THREE POINT HITCH, UPPER LINKS (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - upper, Includes: Refs. 1 - 10

1шт.

1

527994R1

SCREW

ASSEMBLY - upper link (Left hand thread) (Order 1328195C93)

1шт.

2

1536396C1

PIN,40mm OD x 160mm L

ASSEMBLY - upper link, category II

1шт.

3

738-3640

PIN,6mm OD x 40mm L, Coiled

- coiled spring, 6 x 40 mm

1шт.

4

528003R1

TURNBUCKLE

- upper link (Order 1328195C93)

1шт.

5

65958C2

ROD

- turnbuckle handle

1шт.

6

3048296R1

BUTTON

KNOB - turnbuckle rod

1шт.

7

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

- hex, 1-1/8 inch NC

1шт.

8

527996R1

SCREW

SCREW ASSEMBLY - upper link (Right hand thread) (Order 1328195C93)

1шт.

9

1328192C3

PIN,25.4mm OD x 134mm L

- upper link, category II

1шт.

10

1328218C1

LINCH PIN,11mm OD

Assy - quick attachable

1шт.

1328195C93

UPPER LINK

LINK ASSEMBLY - upper (Optional to 528079R93), Includes: Refs. 12 - 19

1шт.

12

1328189C1

SCREW,M27 x 3, LH Threads

SCREW ASSEMBLY - upper link (Left hand thread)

1шт.

13

1536396C1

PIN,40mm OD x 160mm L

ASSEMBLY - upper link, category II

1шт.

14

738-3640

PIN,6mm OD x 40mm L, Coiled

- coiled spring, 6 x 40 mm

1шт.

15

1328196C1

TRUNNION,M27 x 3

TURNBUCKLE - upper link

1шт.

16

905709R1

THIN NUT,Thin, M27 x 3

- hex, 27 mm - 3.00

1шт.

17

1328190C1

SCREW,M27 x 3

SCREW ASSEMBLY - upper link (Right hand thread)

1шт.

18

1328192C3

PIN,25.4mm OD x 134mm L

- upper link, category II

1шт.

19

1328218C1

LINCH PIN,11mm OD

Assy - quick attachable

1шт.
