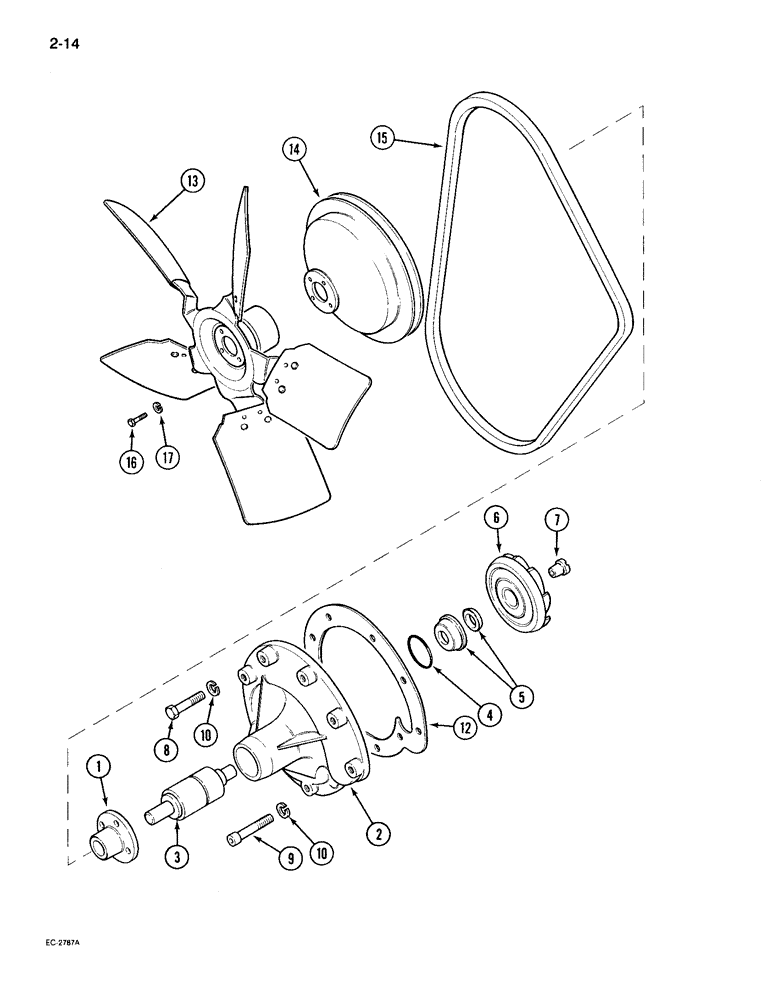

Запчасти Case IH 895 (2-14) - WATER PUMP AND FAN (02) - ENGINE

3132739R93

PUMP, WATER

PUMP ASSEMBLY - water

1шт.

3132739R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

735099C91

REMAN-WATER PUMP

PUMP ASSEMBLY - water, remanufactured

1шт.

1928119C1

CORE-WATER PUMP

RETURN NUMBER - water pump (Use this part number to return water pump core for credit)

1шт.

1

3132146R1

HUB

HUB - pulley

1шт.

2

3132677R41

BODY

BODY - pump, complete with bearing

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

BEARING - pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - water pump (Order kit 3055285R94)

1шт.

Part of water pump reconditioning kit P/N 3055285R94

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - complete with sealing ring (Order kit 3055285R94)

1шт.

Part of water pump reconditioning kit P/N 3055285R94

1шт.

6

787579R2

IMPELLER

IMPELLER - pump

1шт.

7

3055308R1

PLUG

PLUG - closing

1шт.

8

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2"

7шт.

9

61-33122

HEX SOC SCREW,5/16"-18 x 1 3/8"

SCREW - cap, hex socket, 5/16 NC x 1-3/8 inch

1шт.

10

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

12

3055177R3

GASKET

GASKET - water pump

1шт.

Part of water pump reconditioning kit P/N 3055285R94

1шт.

3055285R94

GASKET KIT

KIT - reconditioning, water pump, Includes: Ref. 4, 5 and 12

1шт.

13

84733C1

FAN

FAN - engine cooling, 5 blade, Fan, without air conditioning

1шт.

14

401124R2

PULLEY

PULLEY - water pump, Fan, without air conditioning

1шт.

15

3129140R1

V-BELT,13.70 mm W

Fan, with and without air conditioning

1шт.

16

14-411

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5, Full Thd

BOLT, , Fan, without air conditioning Hex, 1/4"-28 x 11/16", G5, Full Thd

4шт.

17

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

WASHER - lock, 1/4 inch, Fan, without air conditioning

4шт.

13

84416C1

FAN

FAN - engine cooling, 6 blade (See Fig. 2-8), With air conditioning

1шт.

14

84624C1

PULLEY

PULLEY - water pump (See Fig. 2-8), With air conditioning

1шт.

15

3129140R1

V-BELT,13.70 mm W

Fan, with air conditioning

1шт.

16

433061

BOLT,Hex, 1/4" - 28 x 3 1/4", Gr 5

BOLT - hex, 1/4 NF x 3-1/4 inch, grade 5, With air conditioning

4шт.

17

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

WASHER - lock, 1/4 inch, With air conditioning

4шт.
