Запчасти Case IH 895 (9-076) - CAB, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

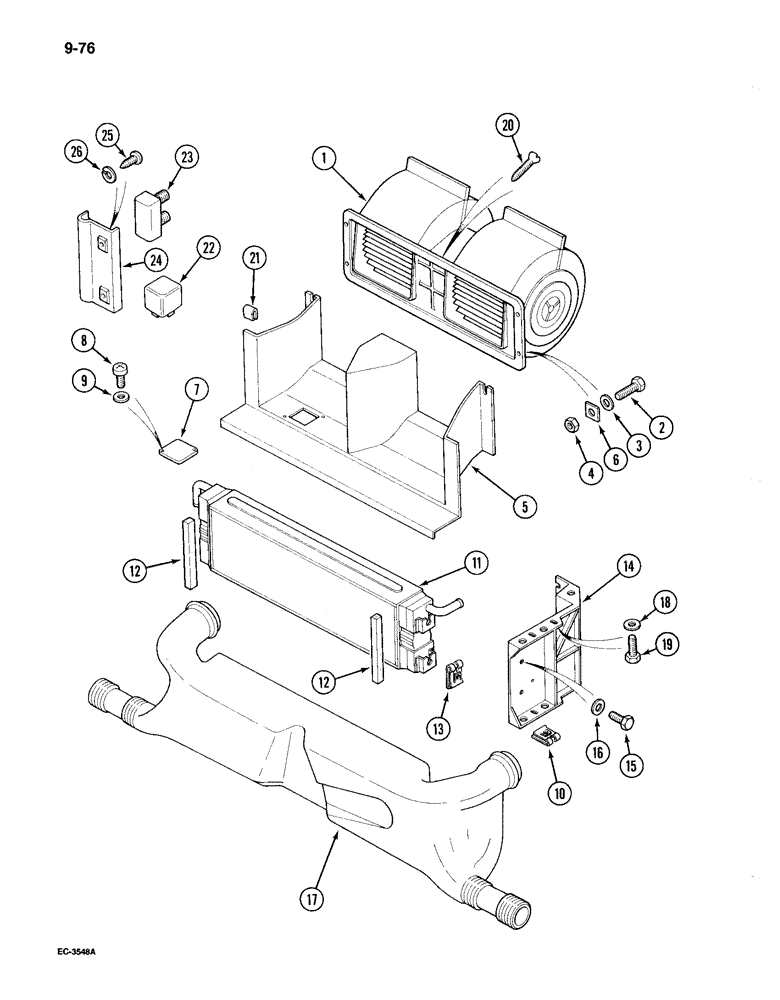

Схема запчастей Case IH 895 - (9-076) - CAB, HEATER ASSEMBLY (09) - CHASSIS/ATTACHMENTS
20
1
3
10
2
5
21
25
24
13
23
15
16
14
26
18
12
19
6
7
4
11
17
9
22
8
12

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

HEATER ASSEMBLY - cab, Includes: Refs. 1 - 26

1шт.

1

REF

INSTRUCTION

BLOWER ASSEMBLY - air (Behr) (See Fig. 9-80)

1шт.

1

REF

INSTRUCTION

BLOWER ASSEMBLY - air (Aurora) (See Fig. 9-78)

1шт.

2

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

3

934753R1

WASHER

- flat, 0.28 x 0.75 inch

4шт.

4

825-1406

NUT,M6, Cl 8

4шт.

5

3233571R1

DEFLECTOR

- air

1шт.

6

3402978R1

PLATE

- mounting

2шт.

7

1535269C1

COVER

- deflector

2шт.

8

905222R1

SCREW - pan head, cross recess

2шт.

9

893-11004

LOCK WASHER,Ext Tooth, M4

WASHER - flat, 0.28 x 0.75 inch

2шт.

10

3233707R1

SPRING NUT

- spring, push on

2шт.

11

3233586R91

HEAT-EXCHANGER

ELEMENT ASSEMBLY - heat exchanger, Includes: Refs. 12 and 13

1шт.

12

1283288C1

GASKET

- foam

2шт.

13

3233660R1

SPRING NUT

- spring push on

4шт.

14

3233574R1

SUPPORT

- right

1шт.

14

3402833R1

SUPPORT

- left

1шт.

15

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

16

934753R1

WASHER

- flat, 0.28 x 0.75 inch

4шт.

17

3233567R1

MANIFOLD

DEFLECTOR - blower

1шт.

18

934753R1

WASHER

- flat, 0.28 x 0.75 inch

4шт.

19

3230790R1

HEX SOC SCREW,M6 x 16mm, Cl 8.8

- cap, hex socket, 6 x 16 mm

4шт.

20

3404394R1

SCREW

- mounting

1шт.

21

3404393R1

CLIP

- protection

2шт.

22

146461C1

RELAY

- fan, 30 amp

2шт.

23

245763C1

CIRCUIT-BREAKER,20A

BREAKER - circuit, 20 amp

1шт.

23

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp, Serial Range: (Optional-245763C1)

1шт.

24

245765C1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp

1шт.

24

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp, Serial Range: (Optional-245765C1)

1шт.

24

245867C1

HOLDER

- circuit breaker (Not used with 403069C1)

1шт.

25

3233276R1

SELF-TAP SCREW,Pan Hd, M4.2 x 13

SCREW - Phillips tapping, 4.2 x 13 mm

1шт.

26

892-10005

LOCK WASHER,M5

WASHER - lock, 5 mm

1шт.

Выбрано товаров: 32
