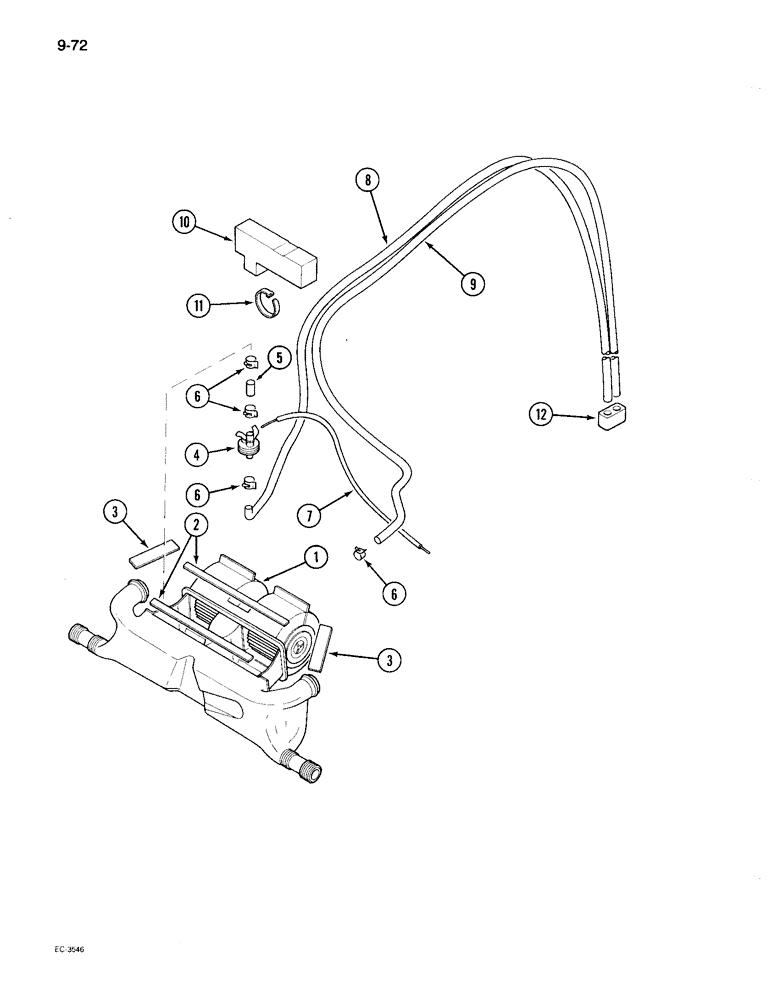

Запчасти Case IH 895 (9-072) - CAB, HEATER PIPES (09) - CHASSIS/ATTACHMENTS
2
1
4
10
6
12
6
3
3
8
9
6
5
11
7
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
CAB - complete with trim (Without air conditioning) (See Fig. 9-35), Includes: Refs. 1 - 12
1шт.
5
3234038R2
HEATER HOSE,15.50 mm ID x 41.00 mm
HOSE , Flexible (Order 97252C1) 15.50 mm ID x 41.00 mm
1шт.
8
3234103R2
HEATER HOSE,15.50 mm ID x 3000.00 mm
HOSE , Heating Water Supply 15.50 mm ID x 3000.00 mm
1шт.
9
3234104R2
HEATER HOSE,15.50 mm ID x 3340.00 mm
HOSE , Water Return 15.50 mm ID x 3340.00 mm
1шт.
Выбрано товаров: 0
