Запчасти Case IH 895 (9-066) - CAB, AIR CONDITIONING VENTS (09) - CHASSIS/ATTACHMENTS

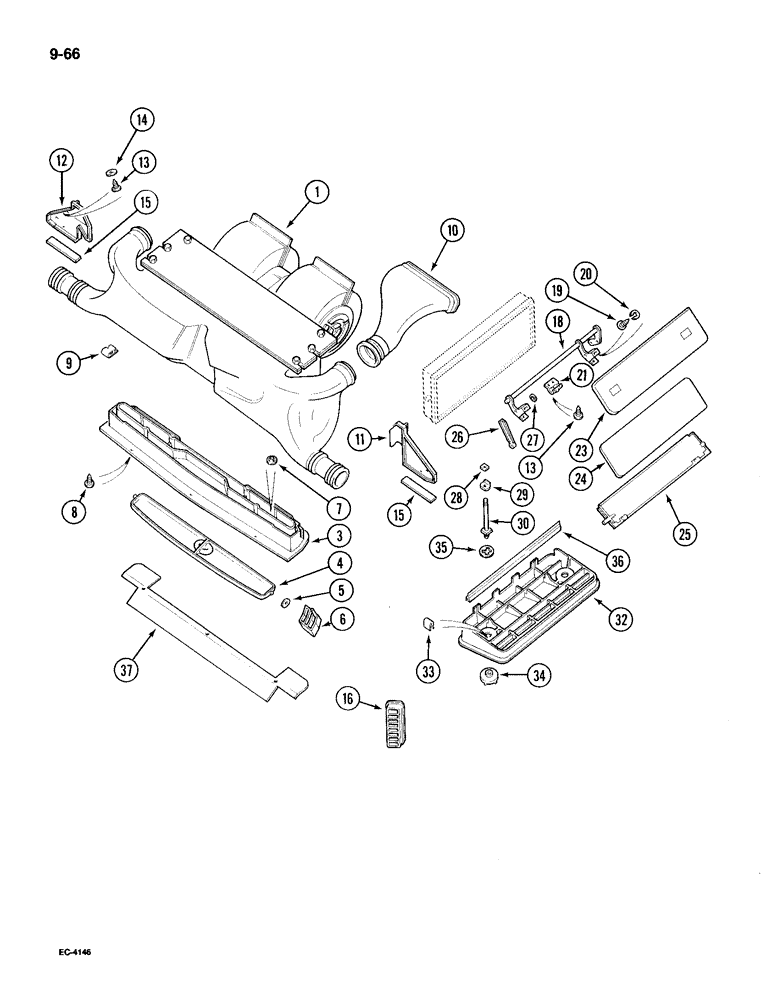

Схема запчастей Case IH 895 - (9-066) - CAB, AIR CONDITIONING VENTS (09) - CHASSIS/ATTACHMENTS
13
30
12
8
19
36
15
4
37
13
5
23
28
32
27
15
29
18
1
24
34
9
25
35
11
14
26
6
20
3
21
7
16
10
33

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CAB - complete with trim (With air conditioning) (See Fig. 9-36), Includes: Refs. 1 - 37

1шт.

1

REF

INSTRUCTION

BLOWER ASSEMBLY - air conditioning (See Fig. 9-70)

1шт.

3233576R91

DIFFUSER

ASSEMBLY - windshield defroster, Includes: Refs. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

DIFFUSER - windshield

1шт.

4

NSS

NOT SOLD SEPARAT

FLAP - windshield diffuser

1шт.

5

3402574R1

RUBBER WASHER

- packing

1шт.

6

3233578R1

DIFFUSER

- left screen

1шт.

6

3233579R1

DIFFUSER

- right screen

1шт.

7

3233581R1

SPRING NUT

- spring, push-on

2шт.

8

905935R1

SELF-TAP SCREW,Oval Hd, M4.2 x 16

SCREW - tapping, oval cross recess, 4.2 x 16 mm

3шт.

8

905936R1

SELF-TAP SCREW,Oval Hd, M4.2 x 19

SCREW - tapping, oval cross recess, 4.2 x 19 mm

3шт.

8

760-14322

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 22mm

SCREW - tapping, oval cross recess, 4.2 x 22 mm

3шт.

9

3234036R1

SPRING NUT

NUT - spring, push-on

3шт.

10

3233554R1

AIR CHANNEL

CHANNEL - air, defroster, left

1шт.

10

3233553R1

AIR CHANNEL

CHANNEL - air, defroster, right

1шт.

11

3233749R1

DEFLECTOR

- front left

1шт.

11

3233750R1

DEFLECTOR

- front right

1шт.

12

3234215R1

DEFLECTOR

- rear left

1шт.

12

3234216R1

DEFLECTOR

- rear right

1шт.

13

3405478R1

SELF-TAP SCREW,Pan Hd, M4.2 x 16

SCREW - 4.2 x 16 mm, hi-lo

16шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

3234178R1

SEALING STRIP

SEAL - front and rear deflectors

4шт.

16

3233540R1

DIFFUSER

- front lower

2шт.

18

3234202R91

SUPPORT

BRACKET - flap assembly, left

1шт.

18

3234203R91

SUPPORT

BRACKET - flap assembly, right

1шт.

19

905922R1

SCREW,M4 x 8mm

- pan, cross recess, 4 x 8 mm, class 4.8

8шт.

20

893-11004

LOCK WASHER,Ext Tooth, M4

8шт.

21

3234189R1

BEARING CAP

BEARING - bracket

4шт.

3402245R91

FLAP

ASSEMBLY - air conditioning, Includes: Refs. 23 and 24

2шт.

23

NSS

NOT SOLD SEPARAT

FLAP - air conditioning

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - flap

1шт.

25

3233745R1

FLAP

- complete

1шт.

26

3234195R1

ARM

- operating

1шт.

27

3233581R1

SPRING NUT

- spring, push-on

1шт.

28

Q5339

NUT

- square, 6 mm

4шт.

29

934049R1

WASHER,Tab, M6.4 ID x 19 OD x .5 Thk

- lock, 6 mm

4шт.

30

3402328R1

ROD ASSY.

ROD - deflector control

4шт.

3233597R91

DIFFUSER

CONTAINER ASSEMBLY - complete, Includes: Refs. 32 - 36

2шт.

32

NSS

NOT SOLD SEPARAT

CONTAINER - air filter

1шт.

33

3404764R1

CLIP

- container

2шт.

34

3233598R1

KNOB

KNOB - control

2шт.

35

3233599R1

WASHER

- spring, push-on

2шт.

36

3234188R1

SEAL

- container

1шт.

37

1990629C1

DEFLECTOR

- defrost

1шт.
