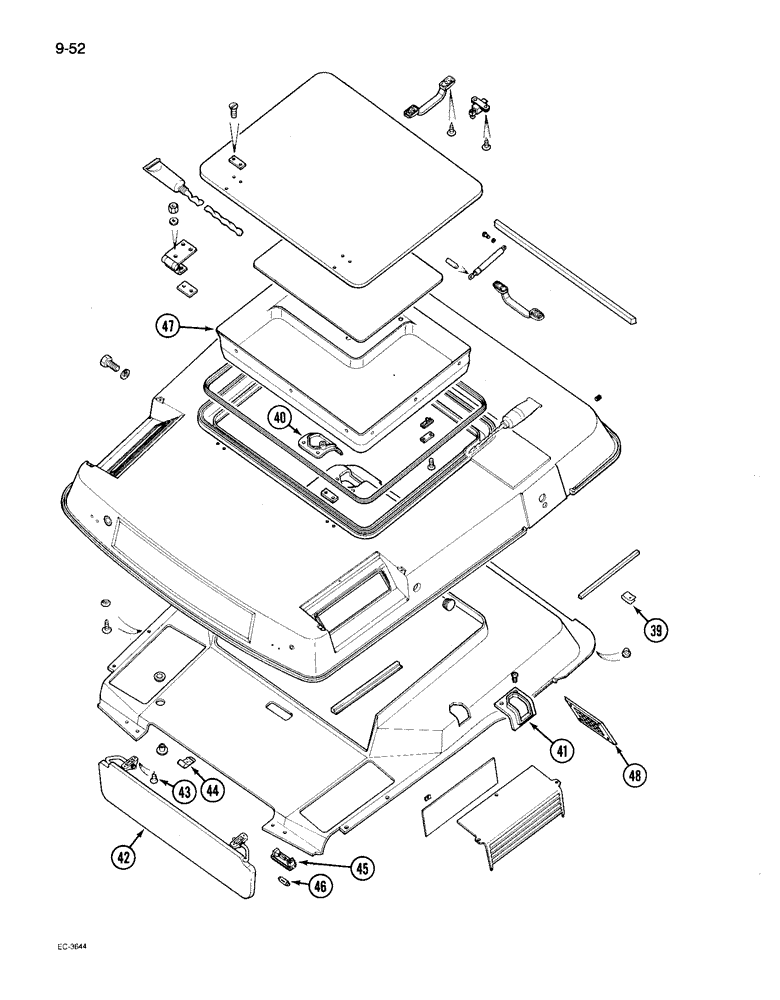

Запчасти Case IH 895 (9-052) - CAB, ROOF FRAME (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - complete with trim (With air conditioning) (Continued from Fig. 9-50), Includes: Refs. 39 - 48

1шт.

REF

INSTRUCTION

CAB - complete with trim (Without air conditioning) (Continued from Fig. 9-50), Includes: Refs. 39 - 48

1шт.

39

3234042R1

SPRING NUT

- spring, push-on, 4.2 mm

1шт.

39

3234191R1

SPRING NUT

- spring, push-on

1шт.

39

3234214R1

SPRING NUT

- spring, push-on

1шт.

40

3234111R2

COVER

- blanking

2шт.

41

1330715C2

COVER

C0VER - blanking (If equipped)

2шт.

42

3234218R2

VISOR, SUN

VISOR - sun

1шт.

43

905934R1

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

4шт.

44

3234214R1

SPRING NUT

- spring, push-on

4шт.

45

K303720

INTERIOR LIGHT

LIGHT - courtesy (Order 1983391C1) (See Fig. 4-4)

1шт.

46

710196R1

BULB,C5W, 12V, 5W

LAMP - festoon, 12V/5W

1шт.

47

82462C2

PADDING

LINING - roof hatch (See Fig. 9-55)

1шт.

48

REF

INSTRUCTION

GRILLE - speaker (See Fig. 9-56)

1шт.
