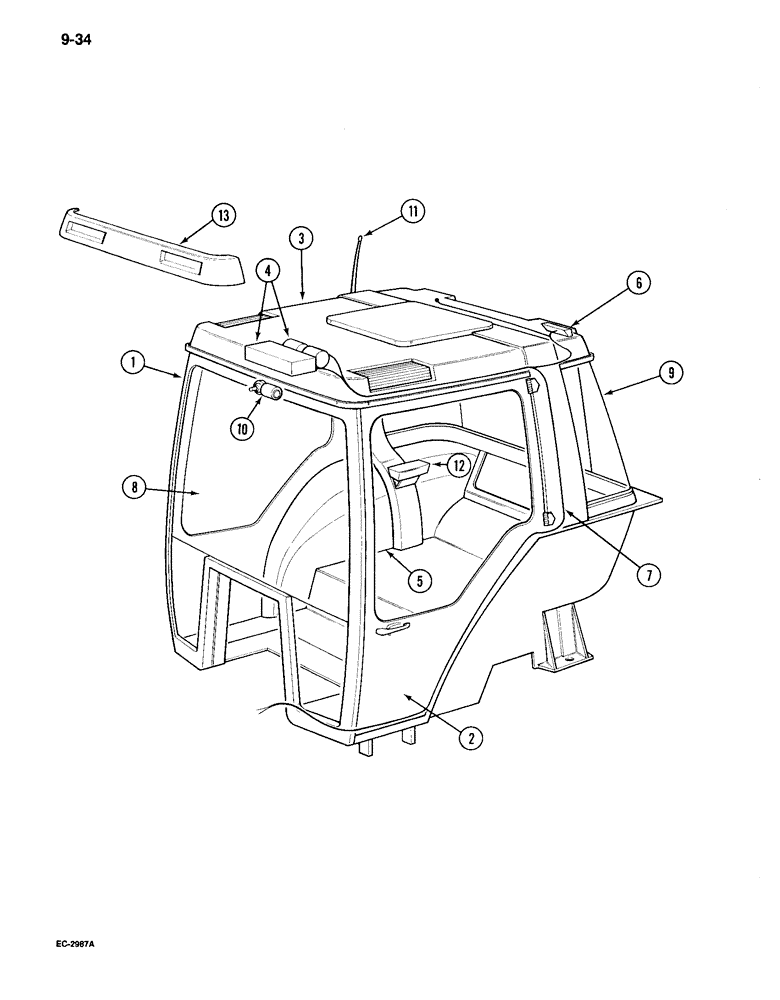

Запчасти Case IH 895 (9-034) - CAB, WITH AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1535159C4

CAB

- complete with trim, Includes: Refs. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab (See Fig. 9-36)

1шт.

2

REF

INSTRUCTION

DOOR ASSEMBLY - left (See Fig. 9-40)

1шт.

2

REF

INSTRUCTION

DOOR ASSEMBLY - right (See Fig. 9-40)

1шт.

3

NSS

NOT SOLD SEPARAT

ROOF ASSEMBLY - cab, with cover (See Fig. 9-50)

1шт.

4

REF

INSTRUCTION

BLOWER ASSEMBLY - air conditioning (See Fig. 9-70)

1шт.

5

NSS

NOT SOLD SEPARAT

LINING - wheel housing (See Fig. 9-58)

1шт.

6

NSS

NOT SOLD SEPARAT

LIGHT- spot, rear left work light (See Fig. 4-10)

1шт.

7

REF

INSTRUCTION

HARNESS - cab (See Fig. 4-4)

1шт.

7

REF

INSTRUCTION

HARNESS - air conditioning (See Fig. 4-4)

1шт.

8

NSS

NOT SOLD SEPARAT

WINDSHIELD - front (See Fig. 9-46)

1шт.

9

NSS

NOT SOLD SEPARAT

WINDOW - rear (See Fig. 9-48)

1шт.

10

REF

INSTRUCTION

MOTOR - windshield wiper (See Fig. 9-86)

1шт.

11

REF

INSTRUCTION

ANTENNA - radio (See Fig. 9-56)

1шт.

12

REF

INSTRUCTION

ARMREST - right (See Fig. 9-60)

1шт.

13

REF

INSTRUCTION

PANEL - front (See Fig. 4-18)

1шт.

REF

INSTRUCTION

PANEL ASSEMBLY - air conditioning control (See Fig. 9-68)

1шт.
