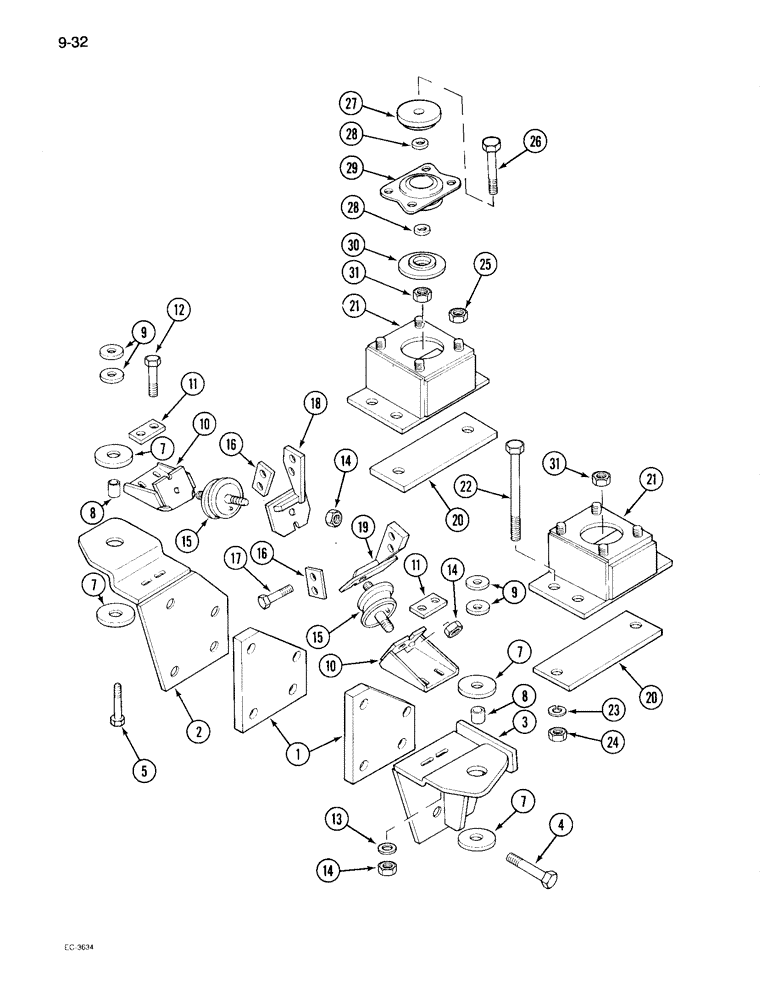

Запчасти Case IH 895 (9-032) - CAB MOUNTINGS, PRIOR TO P.I.N. JJE0013400, FRONT ISO-MOUNTS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
3129865R2
SPACER
- front mounting
2шт.
2
3129860R3
BRACKET
ASSEMBLY - front isomount, right
1шт.
3
3129859R3
SUPPORT
BRACKET ASSEMBLY - front isomount, left
1шт.
4
26-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8
- hex, 3/4 NC x 2-1/2 inch, grade 8
8шт.
5
1970963C1
BOLT,Hex, M12 x 75mm, Cl 10.9
BOLT - hex, 12 mm - 1.75 x 75 mm
2шт.
7
3399962R1
WASHER
DAMPER - front isomount
4шт.
8
3399956R3
SPACER
- front isomount (Order 3399952R2)
2шт.
9
3399953R3
WASHER
- spacer
1шт.
10
3399416R2
SUPPORT
- front isomount
2шт.
11
3399415R1
PLATE
- retaining
2шт.
12
813-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
- hex, 12 - 1.75 x 45 mm
4шт.
13
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
4шт.
14
905210R1
NUT,M12 x 1.75, Cl 8
NUT - hex lock, 12 mm
4шт.
15
3399959R1
RUBBER MOUNTING
DAMPER - isomount
2шт.
16
3399417R2
PLATE
- retaining
2шт.
17
30236R1
BOLT,M14 x 40mm, Cl 8.8
- hex, 14 mm - 2.00 x 40 mm
4шт.
18
3399404R2
BRACKET
ASSEMBLY - front right
1шт.
19
3399403R2
BRACKET
ASSEMBLY - front left
1шт.
20
1500903C3
PLATE
- front axle mounting, rear ISO mounts
2шт.
21
91863C2
SUPPORT ASSY.
SUPPORT ASSEMBLY - rear isomount
2шт.
22
13-10128
BOLT,Hex, 5/8" - 11 x 8", Gr 5
Rear Iso-mounts Hex, 5/8"-11 x 8", G5
4шт.
23
92-11062
LOCK WASHER,5/8"
WASHER, LOCK, , Rear ISO mounts 5/8"
4шт.
24
25-1010
NUT,5/8"-11, G5
Rear ISO mounts 5/8"-11, G5
4шт.
26
26-1072
BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8
- hex, 5/8 NC x 4-1/2 inch, grade 8, rear ISO mounts
2шт.
27
3116801R1
CUP WASHER
WASHER - cone, rear ISO mounts
2шт.
28
3048473R2
WASHER
- centralizing, rear ISO mounts
2шт.
29
1502231C91
RUBBER MOUNTING
MOUNTING - rubber, rear, rear ISO mounts
2шт.
30
3116148R1
WASHER
- rebound, rear ISO mounts
2шт.
31
3100765R1
NUT
- hex, Philidas lock, 5/8 inch NC, rear ISO mounts
2шт.
Выбрано товаров: 30
