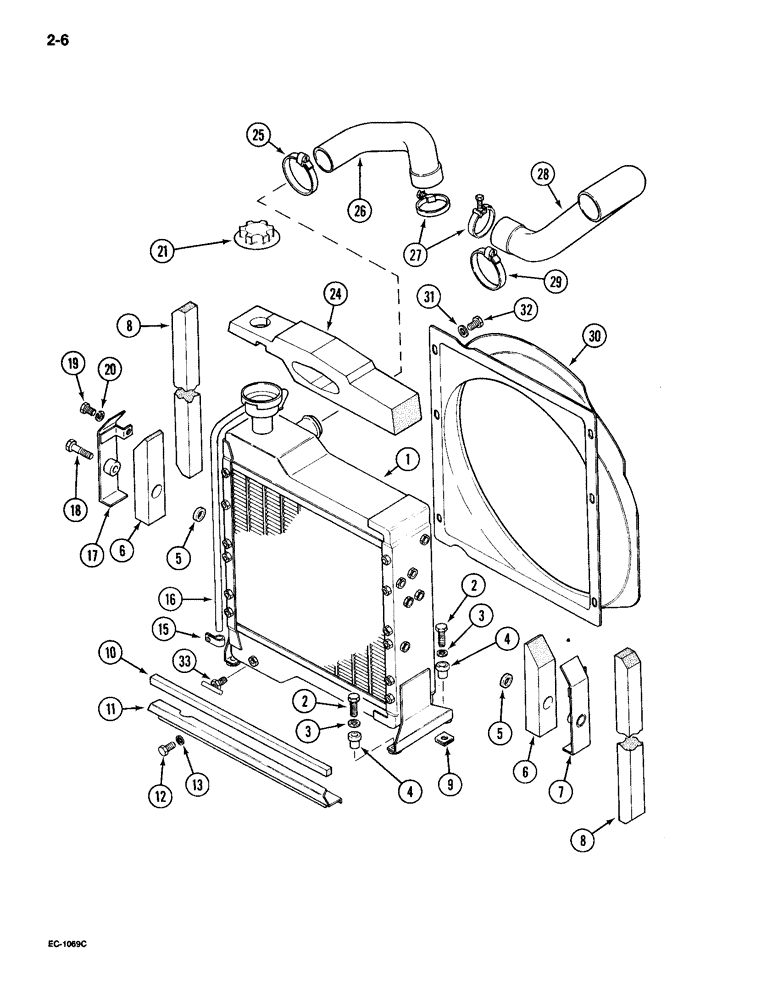

Запчасти Case IH 895 (2-06) - RADIATOR AND CONNECTIONS, WITH AIR CONDITIONING OR, WITH TROPICAL COOLING (02) - ENGINE

1

84673C5

RADIATOR

ASSEMBLY - engine coolant

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

95-81087

WASHER,13/32" x 1 1/8" x .075"

- flat, 13/32 x 1-1/8 x 5/64 inch

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - radiator isolator

4шт.

5

86224H

SPACER,1/4" Pipe x 3/8"

Radiator shield 1/4" Pipe x 3/8"

2шт.

6

98940C1

SEAL

- radiator side shield

2шт.

7

98914C1

GUARD

SHIELD - radiator seal, left

1шт.

8

73217C1

FILLING STRIP

SEAL - radiator side, 38 x 38 x 325 mm

2шт.

Cut from bulk foam to needed size.

1шт.

9

84525C1

SPACER

- rear mounting

2шт.

10

98944C1

ADHESIVE STRIP

SEAL - foam, lower baffle, 13 x 13 x 480 mm

1шт.

Reference fzg 19197 for other available foam strips.

1шт.

11

98958C1

BAFFLE

- lower air

1шт.

12

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

2шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

163135H1

CLAMP,7/16", 3/8" Bolt

- bare metal, 0.44 inch diameter

1шт.

16

84515C3

HOSE

- overflow

1шт.

17

98913C1

GUARD

SHIELD - radiator seal, right

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

19

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

1500626C91

PLUG

CAP - radiator, complete

1шт.

24

98918C1

SEAL

- upper radiator

1шт.

25

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

1шт.

26

84496C1

RADIATOR HOSE,44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

Upper 44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

1шт.

27

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

2шт.

28

84497C2

RADIATOR HOSE,50.00 mm ID, 57.00 mm ID x 275,203,180 mm, SAE 20 R4 CLASS D1

Lower 50.00 mm ID, 57.00 mm ID x 275,203,180 mm, SAE 20 R4 CLASS D1

1шт.

29

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, #36, 1.81/2.75 Type F Worm

1шт.

30

1332963C1

SHROUD

radiator

1шт.

99768C1

GUARD

shroud, radiator

1шт.

Mesh screens that attach to the radiator shroud

1шт.

99767C1

GUARD

shroud, radiator

1шт.

Mesh screens that attach to the radiator shroud

1шт.

31

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch

7шт.

32

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

7шт.

33

103647

VALVE

- drain cock 1/2 inch taper pipe

1шт.

F64277X

SEAL

EDGING

1шт.
