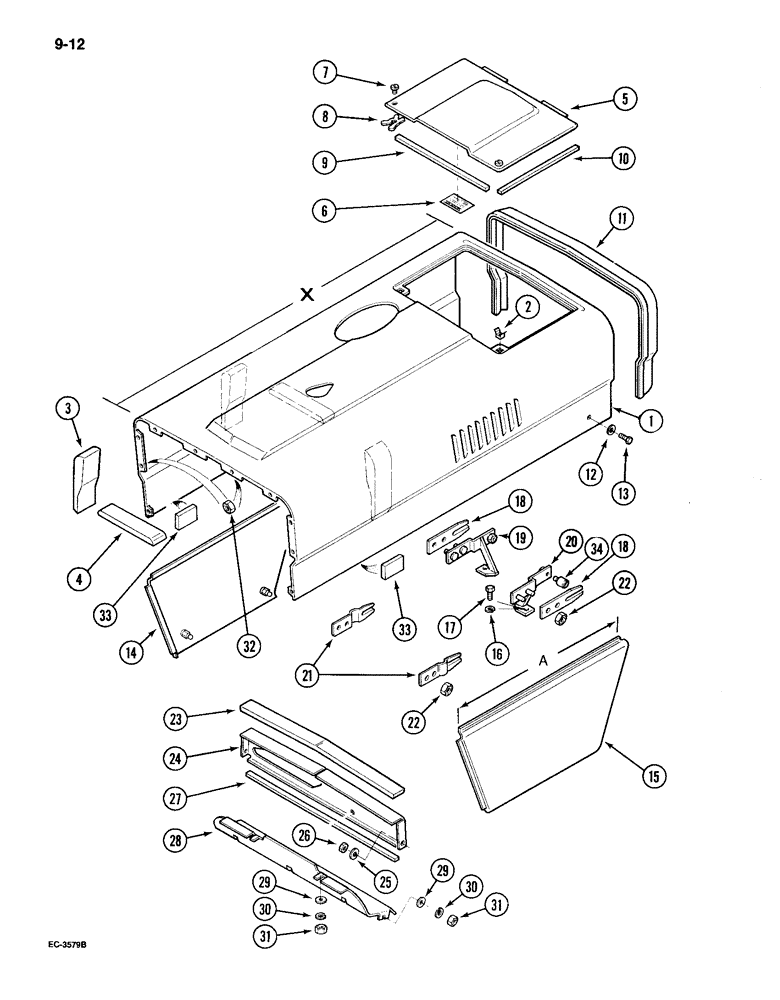

Запчасти Case IH 895 (9-012) - HOOD AND SIDE PANELS, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

1536801C2

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust (Center fill radiator Dimension X = 1451 mm), 54 inches, Includes: Refs. 2 - 4

1шт.

1

1536803C2

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust (Center fill radiator Dimension X = 1375 mm), 54 inches, Includes: Refs. 2 - 4

1шт.

1

1536831C2

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust (Side fill radiator Dimension X = 1375 mm), Includes: Refs. 2 - 4

1шт.

1

1536829C2

HOOD ASSY.

HOOD ASSEMBLY - vertical exhaust (Side fill radiator Dimension X = 1451 mm), Includes: Refs. 2 - 4

1шт.

1

1536833C1

HOOD ASSY.

HOOD ASSEMBLY - downswept exhaust (Dimension X = 1375 mm), Includes: Refs. 2 - 4

1шт.

1

1536835C1

HOOD ASSY.

HOOD ASSEMBLY - downswept exhaust (Dimension X = 1451 mm), Includes: Refs. 2 - 4

1шт.

2

1502286C2

NUT,Floating Cage, 5/16"-18

- cage floating, 5/16 inch NC

2шт.

3

98935C1

SEAL

- foam, hood corner

2шт.

4

98936C1

ADHESIVE STRIP

SEAL - hood centre, 200 mm

1шт.

5

1330795C1

COVER

- rear hood (Order 3121393R91 and 321-6714), Includes: Refs. 6 - 10

1шт.

6

321-6714

DECAL

- battery jump start warning, English

1шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled

2шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled (Optional to 389872 R1)

2шт.

8

376787R1

WASHER

- X-type, 0.256 x 0.75 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10.9 inch (Cut from 73211C1)

1шт.

9

73211C1

GASKET

SEAL - bulk length

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover 17 inch (Cut from 73211C1)

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 45.7 inch (Cut from 1265280C1)

1шт.

11

1265280C1

SEAL

- rubber, bulk length, 4 foot roll

1шт.

12

98775C1

WASHER

- flat, 5/16 inch, painted black

2шт.

13

98778C1

BOLT

- hex, 5/16 inch NC, painted black

2шт.

14

1970607C1

PANEL

- side, right (Dim. A: 23 inch) (Order 1539000C1)

1шт.

14

94406C1

PANEL

- side, right (Dim. A: 19-1/2 inch) (Order 1539011C1)

1шт.

15

1970608C1

PANEL

- side, left (Dim. A: 23 inch) (Order 1539000C1)

1шт.

15

94407C1

PANEL

- side, left (Dim. A: 19-1/2 inch) (Order 1539011C1)

1шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

18

1333180C1

CLIP

- panel, front

2шт.

19

1333183C2

SUPPORT

- side panel, right

1шт.

20

1333184C2

SUPPORT

- side panel, left

1шт.

21

1333181C1

CLIP

- panel, rear hand

1шт.

22

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

8шт.

23

98932C1

ADHESIVE STRIP

SEAL - upper, 465 mm

1шт.

24

98906C1

DEFLECTOR

BAFFLE - upper air

1шт.

25

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

26

825-1406

NUT,M6, Cl 8

3шт.

27

98944C1

ADHESIVE STRIP

SEAL - upper air baffle, 480 mm

1шт.

28

3121397R2

BAFFLE

- upper

1шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

30

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

31

825-1406

NUT,M6, Cl 8

4шт.

32

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

10шт.

32

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

10шт.

33

1333189C2

RUBBER BLOCK

BLOCK - rubber

4шт.

34

104074A1

STOP

- side panels

2шт.

1265282C1

STRIP

SEAL - bulk length

1шт.

73211C1

GASKET

SEAL - bulk length, Serial Range: (Optional-1265282C1)

1шт.
