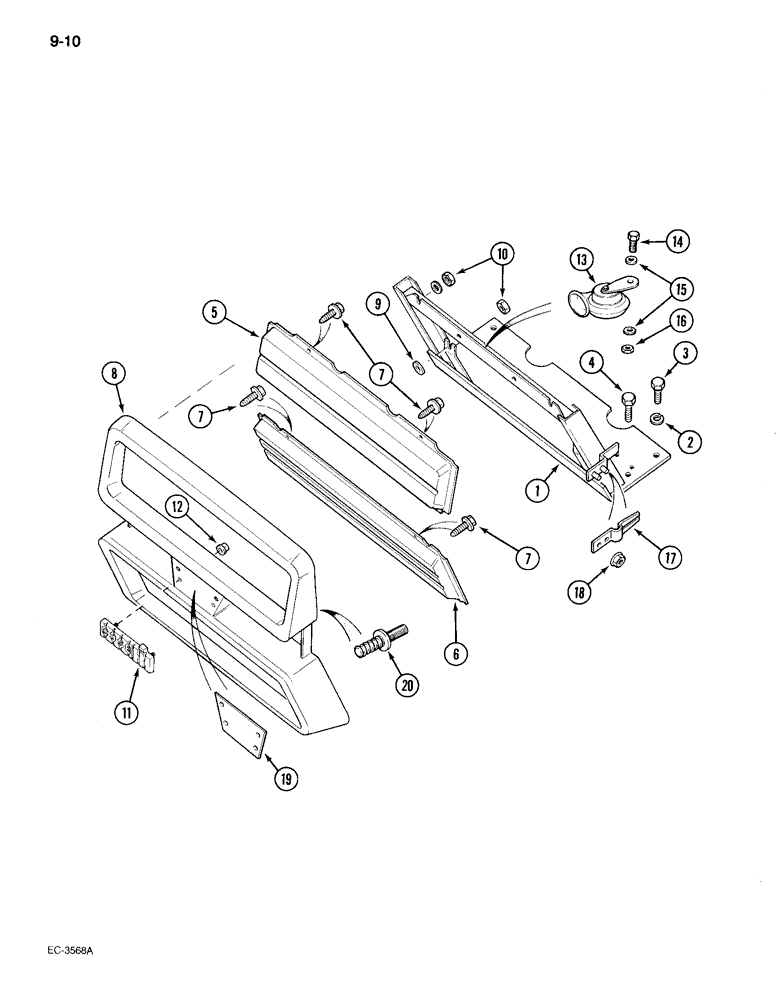

Запчасти Case IH 895 (9-010) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

1

94301C4

SUPPORT ASSY.

SUPPORT ASSEMBLY - grille and hood (Hi-clearance and fabricated bolsters)

1шт.

1

99440C4

SUPPORT ASSY.

SUPPORT ASSEMBLY - grille and hood (All other versions)

1шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(2WD tractor) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

4

483-13816

SET SCREW,Hex Soc, 3/8"-16 x 1"

SCREW - socket head, 3/8 NC x 1 inch (MFD tractor)

2шт.

5

1343408C1

SCREEN

- upper grille

1шт.

6

1343409C1

SCREEN

SCREEN - lower grille

1шт.

7

1334768C1

SELF-TAP SCREW,Hex, M5.5 x 15mm

SCREW, SELF TAPPING, Hex Hd, M5.5 x 15

8шт.

8

1343406C2

GRILLE

ASSEMBLY - front

1шт.

9

99854C1

SHIM

- grille support

1шт.

10

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

11

1343484C1

EMBLEM CASE/IH

EMBLEM - Case IH

1шт.

12

1536080C1

PUSH-ON NUT

- push-on type

2шт.

13

3057542R91

HORN

- warning

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

17

1333180C1

CLIP

- side panel, front

2шт.

18

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

19

1985292C1

DECAL

- front grille

1шт.

20

1537389C1

STUD

- flange, 6 mm class 8

14шт.
