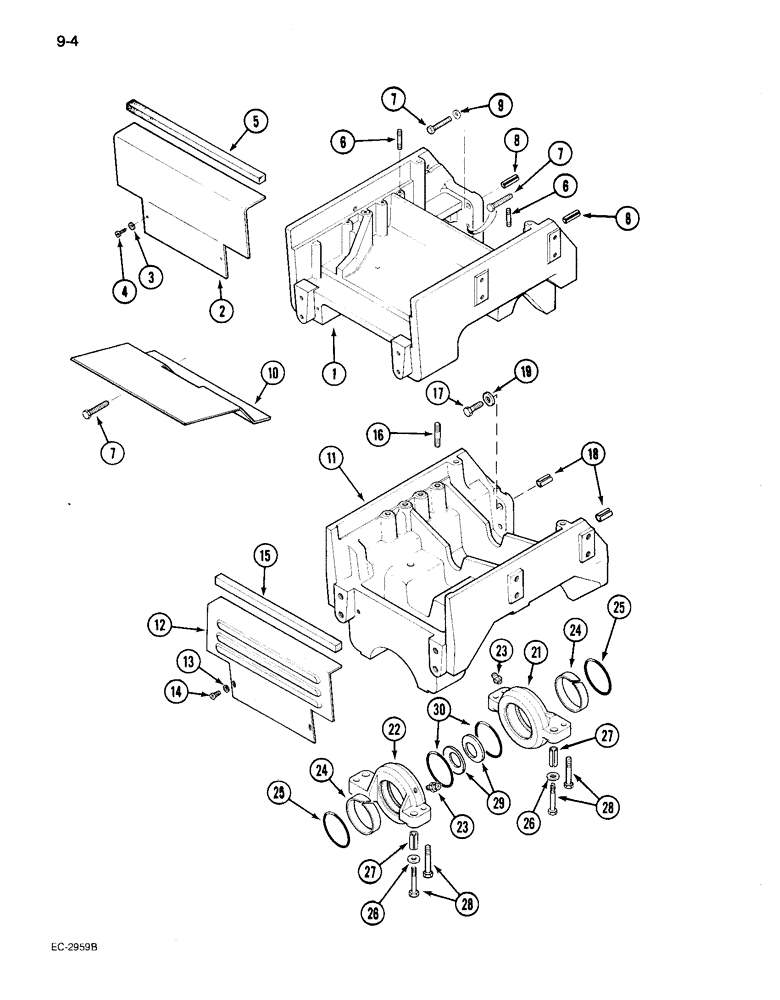

Запчасти Case IH 895 (9-004) - FRONT BOLSTERS, CAST, TWO WHEEL DRIVE TRACTOR (09) - CHASSIS/ATTACHMENTS

1

94178C4

AXLE SUPPORT

BOLSTER - cast, front, standard

1шт.

1

94179C3

AXLE SUPPORT

BOLSTER - cast, front, high clearance

1шт.

2

94334C1

COVER

- bolster, front

1шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3118624R1

SCREW

- hex washer head, 5/16 inch NC

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front cover, 20.5 inch (Cut from 73212C1)

1шт.

5

73212C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

6

99688C1

STUD

- 3/8 inch NC x 47 mm

2шт.

7

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

8шт.

8

905686R1

LOCK PIN,M21 x 16, Slotted

PIN - slotted spring, 21 x 16 mm

2шт.

9

82744C1

WASHER

- hardened

2шт.

10

534811R1

PROTECTION PLATE

BAFFLE - bolster, air (Adjustable swept back front axle)

1шт.

11

94180C3

AXLE SUPPORT

BOLSTER - cast, front, MFD tractor

1шт.

12

94366C1

COVER

- bolster, front, MFD tractor

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , MFD tractor 5/16"

2шт.

14

3118624R1

SCREW

- hex washer head, 5/16 inch NC, MFD tractor

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - front cover, 20.5 inch (Cut from seal 73212C1), MFD tractor

1шт.

15

73212C2

GASKET

SEAL - foam, bulk length, 4 foot roll, MFD tractor

1шт.

16

99688C1

STUD

- 3/8 inch NC x 47 mm, MFD tractor

2шт.

17

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

MFD tractor Hex, 5/8"-11 x 2 3/4", G8

1шт.

18

905686R1

LOCK PIN,M21 x 16, Slotted

PIN - slotted spring, 21 x 16 mm, MFD tractor

2шт.

19

82744C1

WASHER

- hardened, MFD tractor

2шт.

21

1532564C1

HOLDER

BRACKET - axle, rear, MFD tractor

1шт.

22

1532565C1

SUPPORT

BRACKET - axle, front, MFD tractor

1шт.

23

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, , MFD tractor M10 x 1

2шт.

24

82011C2

BUSHING

- axle bracket, MFD tractor

2шт.

25

82091C1

O-RING,5mm Thk x 120mm ID, 88 Duro

- axle bracket, MFD tractor

2шт.

26

1538003C1

WASHER

- hardened, 17.5 x 32 x 6 mm, MFD tractor

8шт.

27

905679R1

LOCK PIN,M21 x 36, Slotted

PIN - slotted spring, 21 x 36 mm, MFD tractor

4шт.

28

626-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

MFD tractor Hex, M16 x 80, 10.9

8шт.

29

1965073C2

WASHER

WASHER - thrust, MFD tractor

2шт.

30

90219C1

O-RING,5mm Thk x 120mm ID, 88 Duro

- specia, MFD tractor

2шт.
