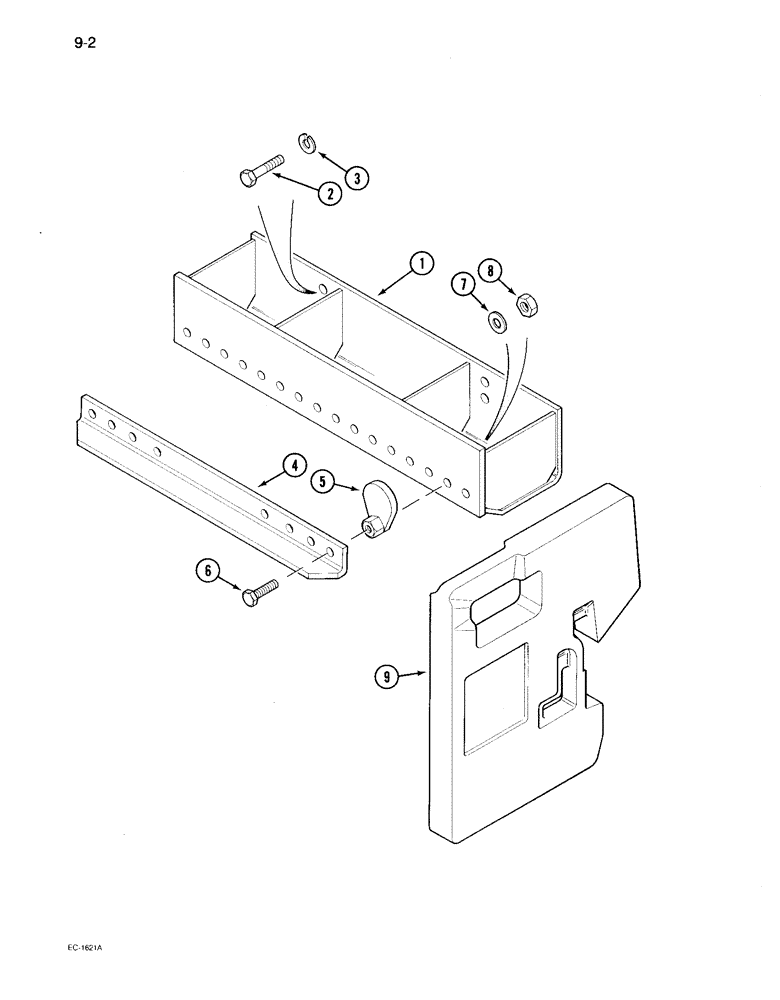

Запчасти Case IH 895 (9-002) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

1

99525C2

BRACKET

ASSEMBLY - front weight mounting

1шт.

2

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

3

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

536042R2

BAR

- front weight retaining

1шт.

5

74202C1

CAM

- weight locking

2шт.

6

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

7

495-81179

WASHER,21/32" x 1 1/4" x .179"

- flat, 21/32 x 1-1/4 x 5/32 inch

2шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

NSS

NOT SOLD SEPARAT

WEIGHT - 100 lb (Use 2 to 7 as required) (Weights furnished as machine attachment only)

1шт.
