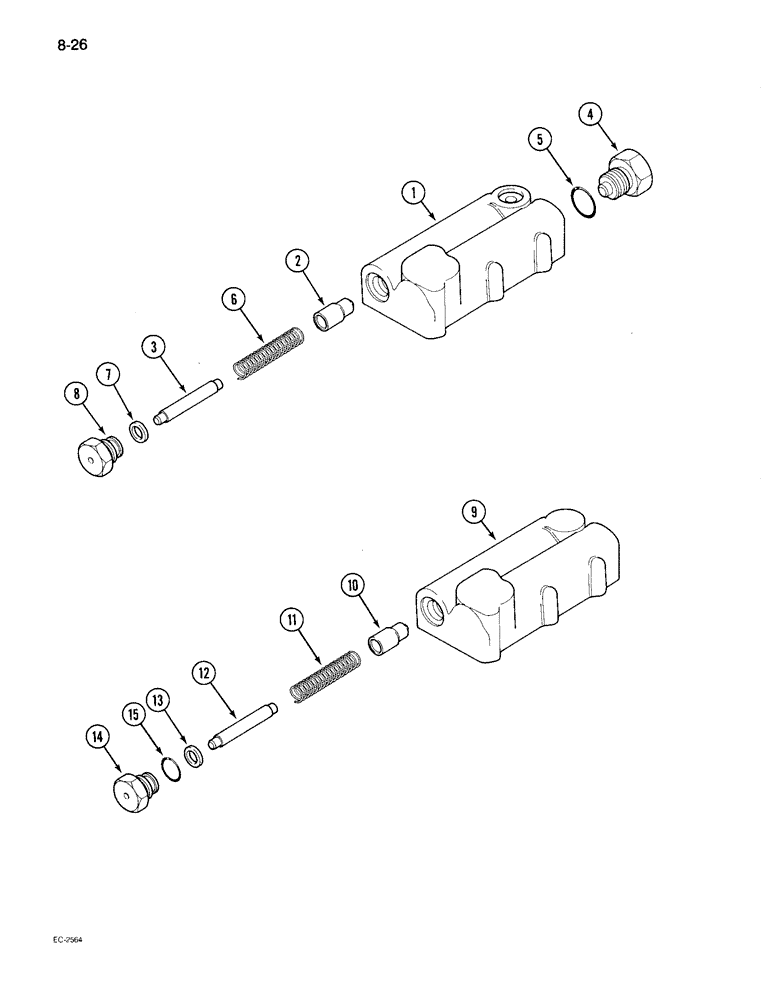

Запчасти Case IH 895 (8-26) - REGULATOR VALVE ASSEMBLY, FORWARD AND REVERSE (08) - HYDRAULICS

94121C92

VALVE

ASSEMBLY - pressure regulator, Includes: Refs. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order valve assembly 94121C92)

1шт.

2

399882R1

POPPET

- poppet, pressure regulator

1шт.

3

399881R2

PIN

- pressure regulator valve

1шт.

4

86398C2

PLUG

- pressure regulator valve

1шт.

6

88426C1

SPRING

- pressure regulator valve

1шт.

7

1954071C1

WASHER

- pressure regulator valve

1шт.

8

1954070C1

PLUG

- regulator valve

1шт.

83190C92

VALVE

ASSEMBLY - pressure regulator, Includes: Refs. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - regulator valve (Order valve assembly 83190C92), MFD tractor without 2 speed power shift

1шт.

10

399882R1

POPPET

- poppet, pressure regulator, MFD tractor without 2 speed power shift

1шт.

11

88426C1

SPRING

- pressure regulator valve, MFD tractor without 2 speed power shift

1шт.

12

399881R2

PIN

- pressure regulator valve, MFD tractor without 2 speed power shift

1шт.

13

1954071C1

WASHER

- pressure regulator valve, MFD tractor without 2 speed power shift

1шт.

14

1954070C1

PLUG

- regulator valve, MFD tractor without 2 speed power shift

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, MFD tractor without 2 speed power shift

1шт.
