Запчасти Case IH 895 (8-02) - OIL FILTER, HYDRAULIC (08) - HYDRAULICS

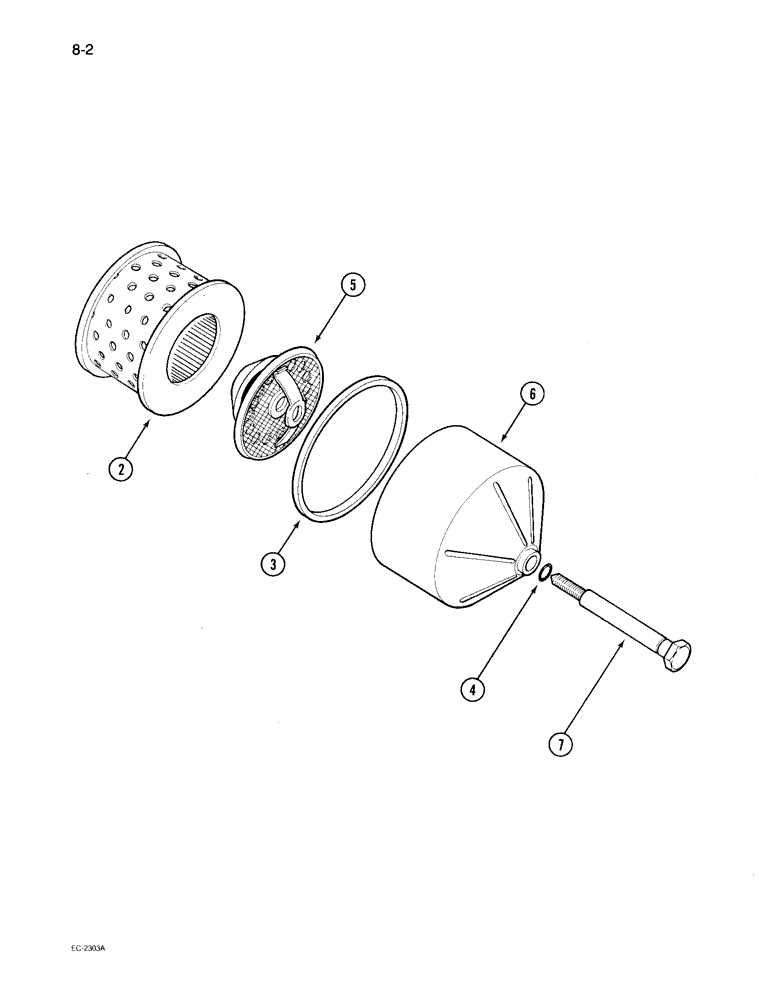

Схема запчастей Case IH 895 - (8-02) - OIL FILTER, HYDRAULIC (08) - HYDRAULICS
6
7
2
3
5
4

Артикул

Название

Примечание

Количество

93413C1

HYDRAULIC OIL FILTER

KIT - service, oil filter element, Includes: Refs. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Order kit 93413C1)

1шт.

3

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

- Oil Filter Case

1шт.

4

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

4

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

5

405464R3

VALVE

- by-pass, with screen assembly

1шт.

6

68209C1

CASE

ASSEMBLY - oil filter

1шт.

7

68202C1

BOLT

BOLT - filter mounting

1шт.

Выбрано товаров: 8
