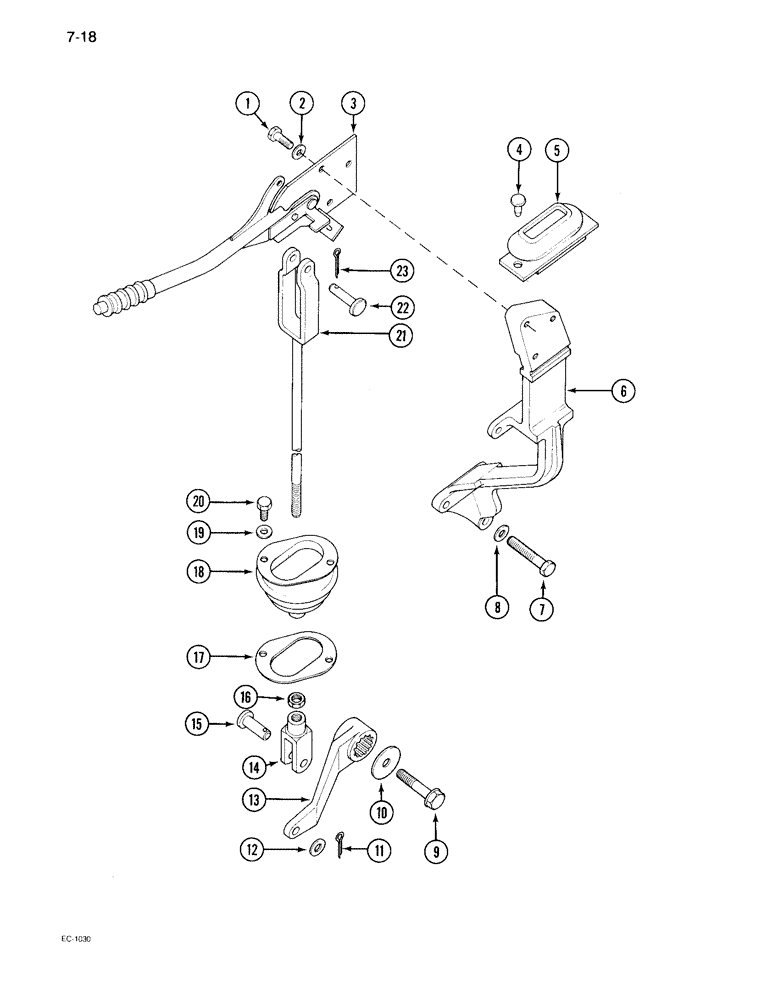

Запчасти Case IH 895 (7-18) - PARK BRAKE LINKAGE, TRACTOR WITH CAB (07) - BRAKES

1

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

- hex, 8 mm - 1.25 x 20 mm

3шт.

2

492-11038

LOCK WASHER,3/8"

3шт.

3

1536752C1

LEVER

ASSEMBLY - park brake (See Fig. 7-20)

1шт.

4

1289539C1

FASTENER

- plastic

2шт.

5

94374C1

BOOT

- park brake support

1шт.

6

94251C2

SUPPORT

- park brake

1шт.

7

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

10

3102893R1

WASHER

- plain, 10.4 x 50 x 3 mm

1шт.

11

733-3220

COTTER PIN,M3.2 x 20

PIN, SPLIT (COTTER), M3.2 x 20

1шт.

12

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

1шт.

13

94231C2

ARM

- actuating

1шт.

13

94231C2

ARM

- actuating

1шт.

14

1537272C1

CLEVIS

- adjustable, 10 mm

1шт.

15

30387R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 10 x 30 mm

1шт.

16

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

1шт.

17

99414C1

PLATE

- clamp

1шт.

18

94375C2

BOOT

- rod actuating

1шт.

19

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

20

30304R1

SCREW

- tapping, 5 mm x 12 mm

2шт.

21

1536446C1

CLEVIS

ASSEMBLY - pull

1шт.

22

31284R1

CLEVIS PIN

PIN - clevis, 10 x 35 mm

1шт.

23

733-3220

COTTER PIN,M3.2 x 20

PIN, SPLIT (COTTER), M3.2 x 20

1шт.
