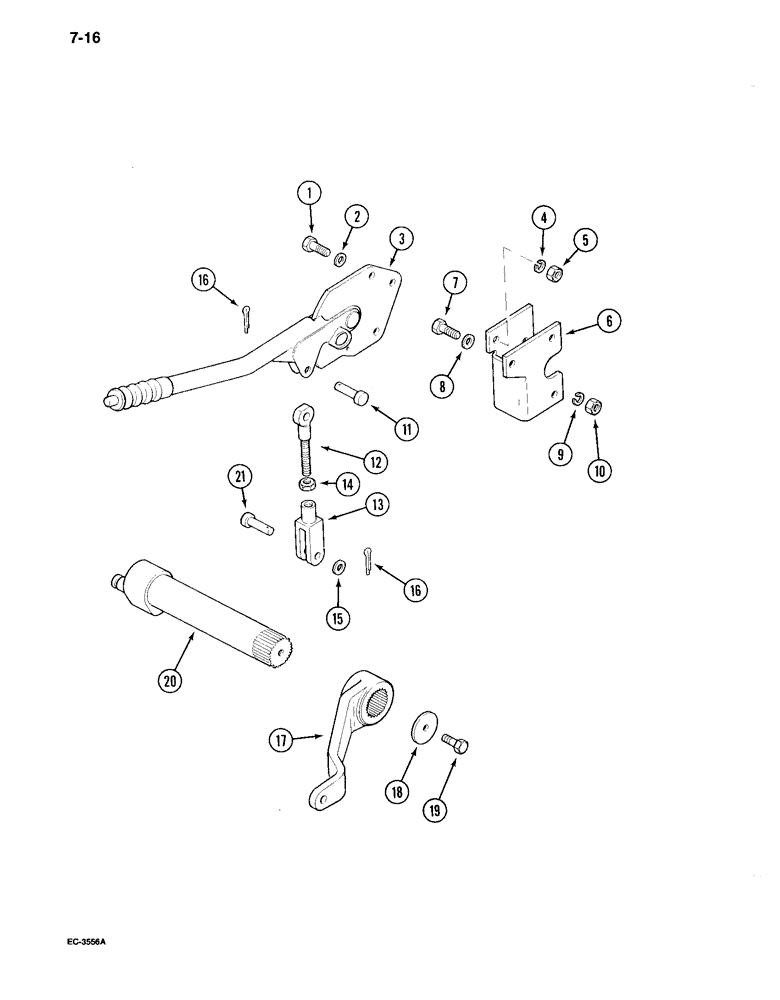

Запчасти Case IH 895 (7-16) - PARK BRAKE LINKAGE, TRACTOR WITHOUT CAB (07) - BRAKES

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

2

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, hardened, 13/32 x 1-1/8 x 9/64 inch

3шт.

3

1536752C1

LEVER

ASSEMBLY - park brake (See Fig. 7-20)

1шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

425-106

NUT,3/8"-16, Cl 5

3шт.

6

1536739C1

SUPPORT

BRACKET - mounting, hand brake

1шт.

7

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm

3шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

3шт.

11

1537454C1

CLEVIS PIN

PIN - clevis, 10 x 30 mm

1шт.

1537815C1

ROD

ASSEMBLY - hand brake lever, Includes: Refs. 12 - 14

1шт.

12

1537948C1

ROD,M10 x 1.5 x 80mm

ASSEMBLY - pull

1шт.

13

1537272C1

CLEVIS

- adjustable, 10 mm - 1.5

1шт.

14

829-1310

NUT,M10, Cl 10

- hex, lock, M10; 10

1шт.

15

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, hardened, 11 x 21 x 2.5 mm

1шт.

16

733-3220

COTTER PIN,M3.2 x 20

PIN, SPLIT (COTTER), M3.2 x 20

1шт.

17

99435C3

ARM

- actuating

1шт.

18

3102893R1

WASHER

- flat, 10.4 x 50 x 3 mm

1шт.

19

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

1шт.

20

94328C3

SHAFT

ASSEMBLY - brake cam (See Fig. 7-14)

1шт.

21

30387R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 10 x 30 mm

1шт.
