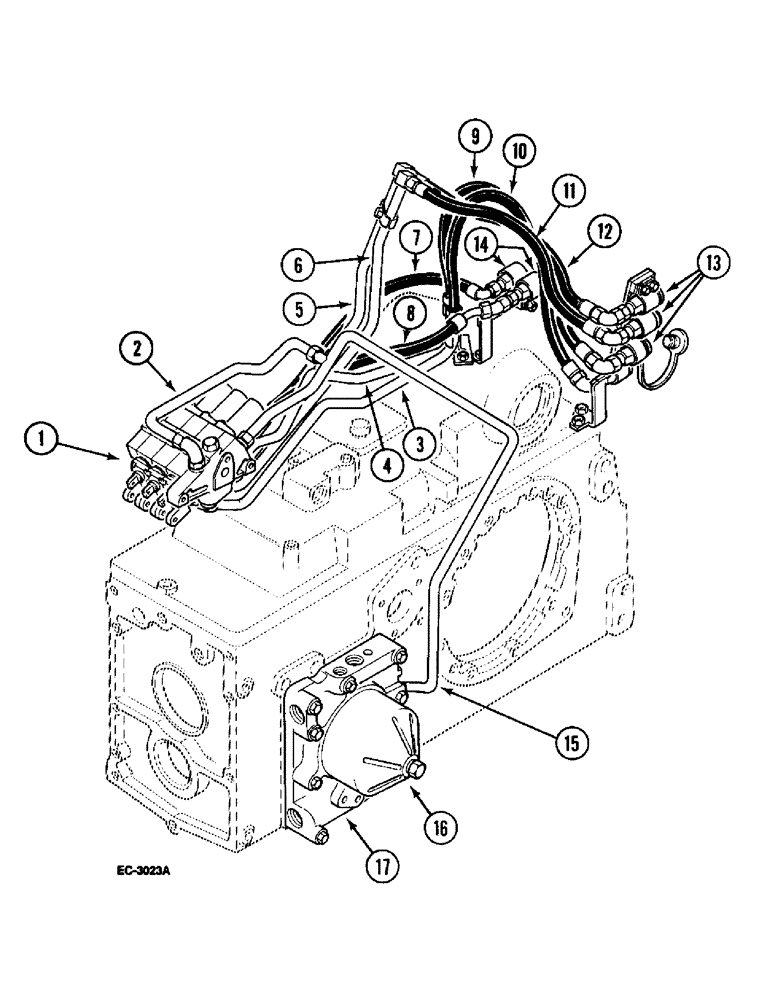

Запчасти Case IH 895 (1-26) - PICTORIAL INDEX, TRACTOR WITHOUT CAB, REMOTE AUXILIARY CONTROL VALVES (00) - PICTORIAL INDEX

1

Remote Auxiliary Control Valves, Pages 8-29, 33, 35, 39, 41, 43

1шт.

2

Remote Auxiliary Valve Return Tube, Page 8-29

1шт.

3

1st Bank Valve Raise Control Tube, Page 8-33

1шт.

4

1st Bank Valve Lower control Tube, Page 8-33

1шт.

5

2nd Bank Valve Raise Control Tube, Page 8-33

1шт.

6

2nd Bank Valve Lower Control Tube, Page 8-33

1шт.

7

3rd Bank Valve Front Outlet Tube, Page 8-35

1шт.

8

3rd Bank Valve Rear Outlet Tube, Page 8-35

1шт.

9

1st Bank Lower Tube to Coupling Hose, Page 8-33

1шт.

10

1st Bank Raise Tube to Coupling Hose, Page 8-33

1шт.

11

2nd Bank Lower Tube to Coupling Hose, Page 8-33

1шт.

12

2nd Bank Raise Tube to Coupling Hose, Page 8-33

1шт.

13

1st and 2nd Bank Break-Away Couplings, Page 8-33

1шт.

14

3rd Bank Break-Away Couplings, Page 8-35

1шт.

15

Multiple Control Valve By-Pass Tube, Page 8-9

1шт.

16

Hydraulic Oil Filter, Page 8-3

1шт.

17

Multiple Control Valve, Pages 8-9, 13

1шт.
