Запчасти Case IH 895 (7-10) - BRAKE MASTER CYLINDER, TRACTOR WITHOUT CAB (07) - BRAKES

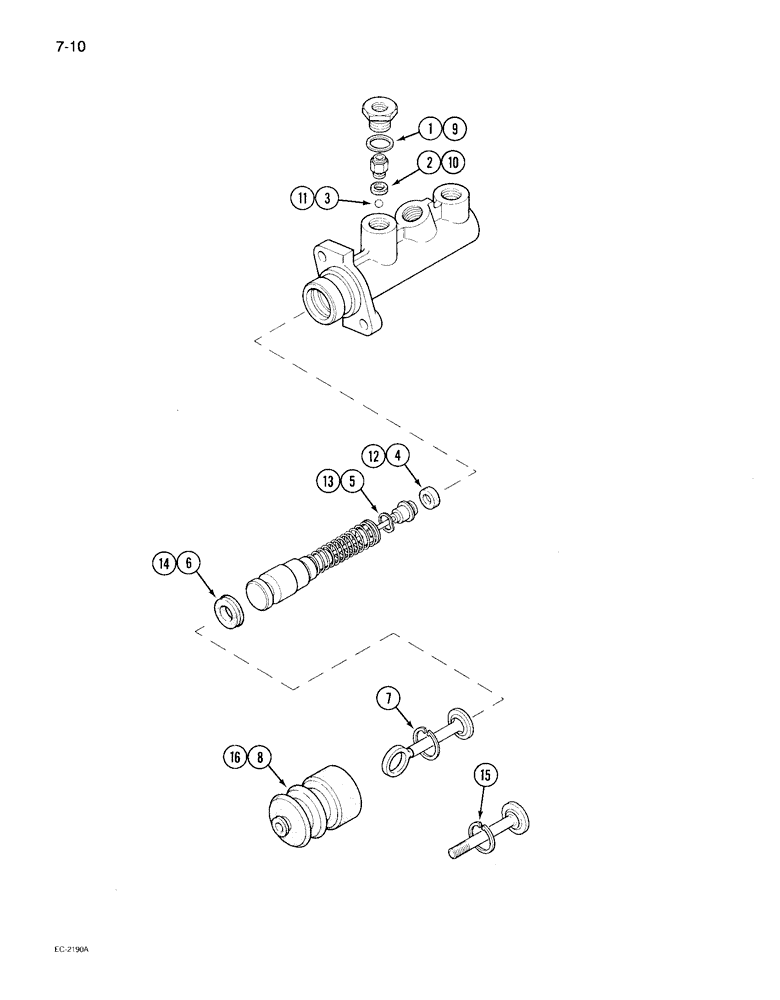

Схема запчастей Case IH 895 - (7-10) - BRAKE MASTER CYLINDER, TRACTOR WITHOUT CAB (07) - BRAKES
6
7
10
8
3
4
16
5
2
13
15
1
12
9
11
14

№

Артикул

Название

Примечание

Количество

1287843C91

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, Includes: Refs. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

GASKET - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

3

NSS

NOT SOLD SEPARAT

BALL - flow valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

7

NSS

NOT SOLD SEPARAT

CIRCLIP - valve

1шт.

Part of brake master cylinder service kit P/N 1288228C1

1шт.

8

1288242C1

BELLOWS

BOOT - dust, brake master cylinder

1шт.

1288228C1

REPAIR KIT

KIT - service, brake master cylinder, Includes: Refs. 1 - 7

1шт.

102027A1

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - flow valve (Order kit 1288229C1), Includes: Refs. 9 - 16, tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - flow valve (Order kit 1288229C1), tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

11

NSS

NOT SOLD SEPARAT

BALL - flow valve (Order kit 1288229C1), tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - valve (Order kit 1288229C1), tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - spring (Order kit 1288229C1), tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - gland (Order kit 1288229C1), tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

15

NSS

NOT SOLD SEPARAT

CIRCLIP - valve (Order kit 1288229C1), tractor with cab

1шт.

Part of brake master cylinder service kit P/N 1288229C1

1шт.

16

85109C1

BELLOWS

BOOT - dust, brake master cylinder, tractor with cab

1шт.

1288229C1

KIT

KIT - service, brake master cylinder, Includes: Ref. 9 thru 15, tractor with cab

1шт.
