Запчасти Case IH 895 (6-120) - REAR WHEELS, CAN - AM (06) - POWER TRAIN

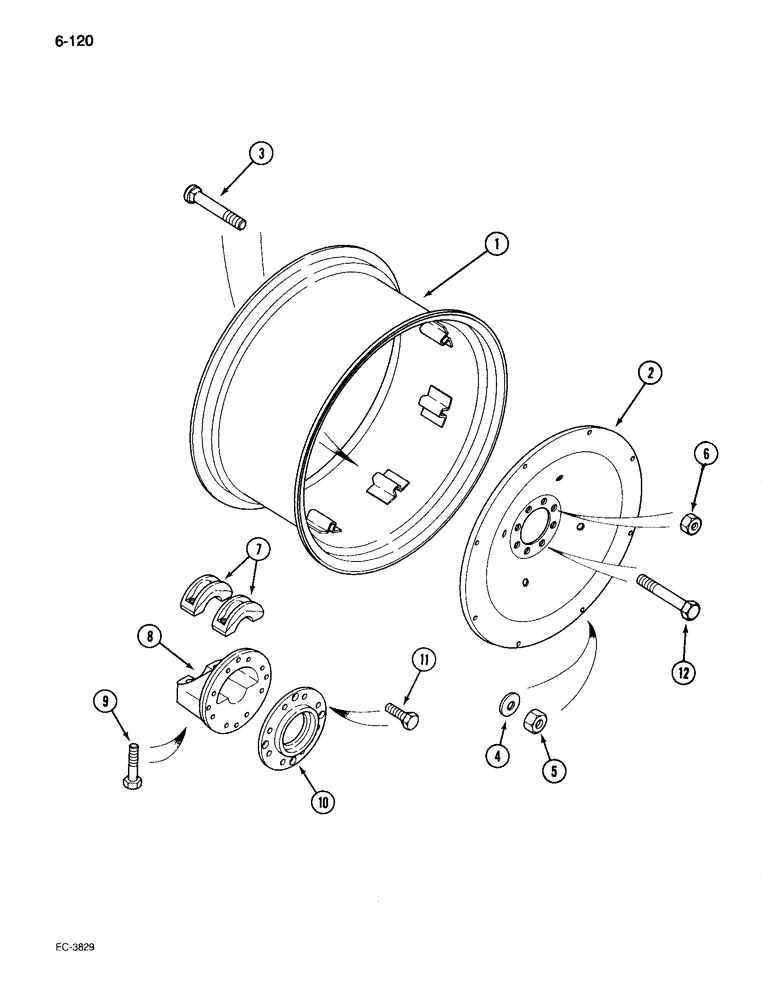

Схема запчастей Case IH 895 - (6-120) - REAR WHEELS, CAN - AM (06) - POWER TRAIN
5
4
3
11
10
9
8
2
1
12
6
7

Артикул

Название

Примечание

Количество

1

1985679C1

RIM

- wheel, W15 x 34 (For use with 16.9 x 34, 18.4 x 34 or 19.9 x 34 tires)

2шт.

2

1985683C1

DISC, WHEEL

DISC - 34 inch wheel

2шт.

3

1985694C1

BOLT

- coach, 16 x 120 mm

16шт.

4

1985696C1

WASHER

- flat, 0.656 inch ID

16шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

1

1985688C1

RIM

- wheel, 11 x 38 (For use with 12.4 x 38 or 13.6 x 38 tires)

2шт.

2

1985680C1

DISC, WHEEL

DISC - wheel, 38 inch

2шт.

3

1985692C1

BOLT

- coach, 16 x 100 mm

16шт.

4

1985696C1

WASHER

- flat, 0.656 inch ID

16шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

1шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

1

1985682C1

RIM

- wheel, W14 x 38 (For use with 15.5 x 38 tire)

2шт.

2

1985680C1

DISC, WHEEL

DISC - wheel, 38 inch

2шт.

3

1985692C1

BOLT

- coach, 16 x 100 mm

16шт.

4

1985696C1

WASHER

- flat, 0.656 inch ID

19шт.

5

100020

NUT,M16 x 2.0, Cl 8

- hex, 16 mm - 2.00

16шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

7

389539R1

CLAMP

- rear wheel hub, clamp for wheel type axle

4шт.

8

530504R1

HUB

- rear wheel, hub clamp for wheel type axle

2шт.

9

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex, hub clamp for wheel type axle

8шт.

10

365957R3

FLANGE

- pilot, rear wheel hub, clamp for wheel type axle

2шт.

11

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - nylock, 1/2 - 13 x 1-1/4 inch, hub clamp for wheel type axle

8шт.

12

365397R3

WHEEL BOLT

BOLT - rear wheel mounting, hub clamp for wheel type axle

16шт.

Выбрано товаров: 24
