Запчасти Case IH 895 (6-118[1]) - REAR WHEELS, 30 INCH POWER ADJUSTED WHEELS (06) - POWER TRAIN

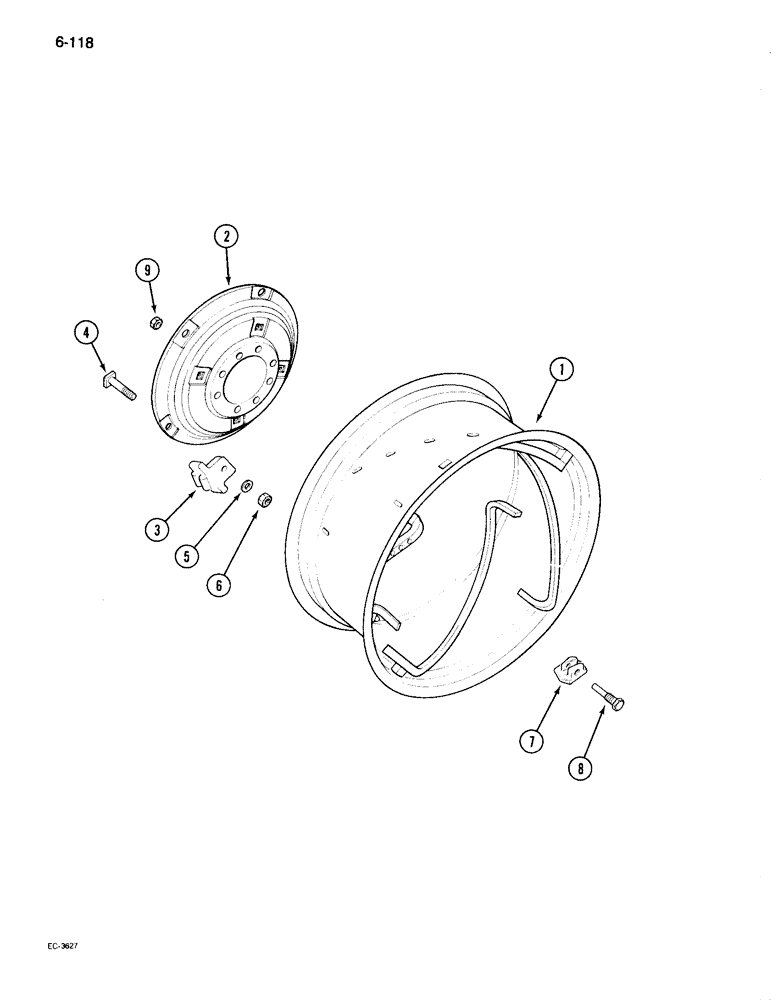

Схема запчастей Case IH 895 - (6-118[1]) - REAR WHEELS, 30 INCH POWER ADJUSTED WHEELS (06) - POWER TRAIN
8
9
6
7
2
1
3
4
5

Артикул

Название

Примечание

Количество

1

1282566C1

RIM

- power adjusted wheel, W14-30 (For 16.9 x 30 tire)

2шт.

2

399002R1

DISC, WHEEL

DISC - formed, 30 inch diameter

2шт.

3

399004R1

SHIN

CLAMP - double ramp

10шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT - square head, 3/4 NC x 2-1/4 inch

10шт.

5

399007R1

WASHER

- flat, 3/4 inch

10шт.

6

399006R1

WHEEL NUT

- hex, 3/4 inch NC

10шт.

7

A9406

STOP

BODY - stop

4шт.

8

K200142

SCREW,Hex, 9/16" x 2 1/8"

- stop

4шт.

9

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

Выбрано товаров: 9
