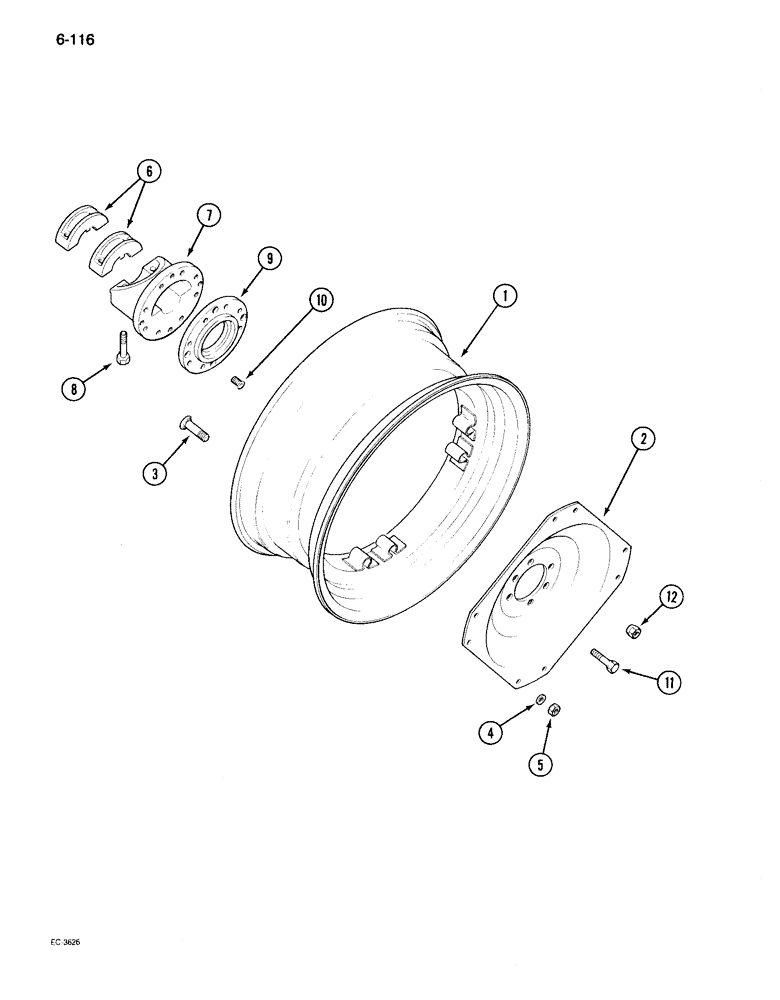

Запчасти Case IH 895 (6-116) - REAR WHEELS, 34 INCH WHEEL (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

WHEEL - complete, DW14-34 (For 16.9 x 34 tire)

2шт.

1

1265238C1

RIM

- wheel, DW14-34

1шт.

2

1265239C1

DISC, WHEEL

DISC - wheel, 32 inch

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm, grade 8.8

8шт.

4

1332731C1

WASHER

8шт.

5

1332732C1

NUT

- hex, 16 mm, grade 8

8шт.

12

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - complete, DW16-34 (For 18.4-34 tire)

2шт.

1

1282782C1

WHEEL

RIM - wheel, DW14-34 (Order 1985371C1)

1шт.

2

1265239C1

DISC, WHEEL

DISC - wheel, 32 inch

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm, grade 8.8

8шт.

4

1332731C1

WASHER

8шт.

5

1332732C1

NUT

- hex, 16 mm, grade 8

8шт.

12

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.
