(6-116[2]) - REAR WHEELS, HUB CLAMP FOR BAR TYPR AXLE

Запчасти Case IH 895 (6-116[2]) - REAR WHEELS, HUB CLAMP FOR BAR TYPR AXLE (06) - POWER TRAIN

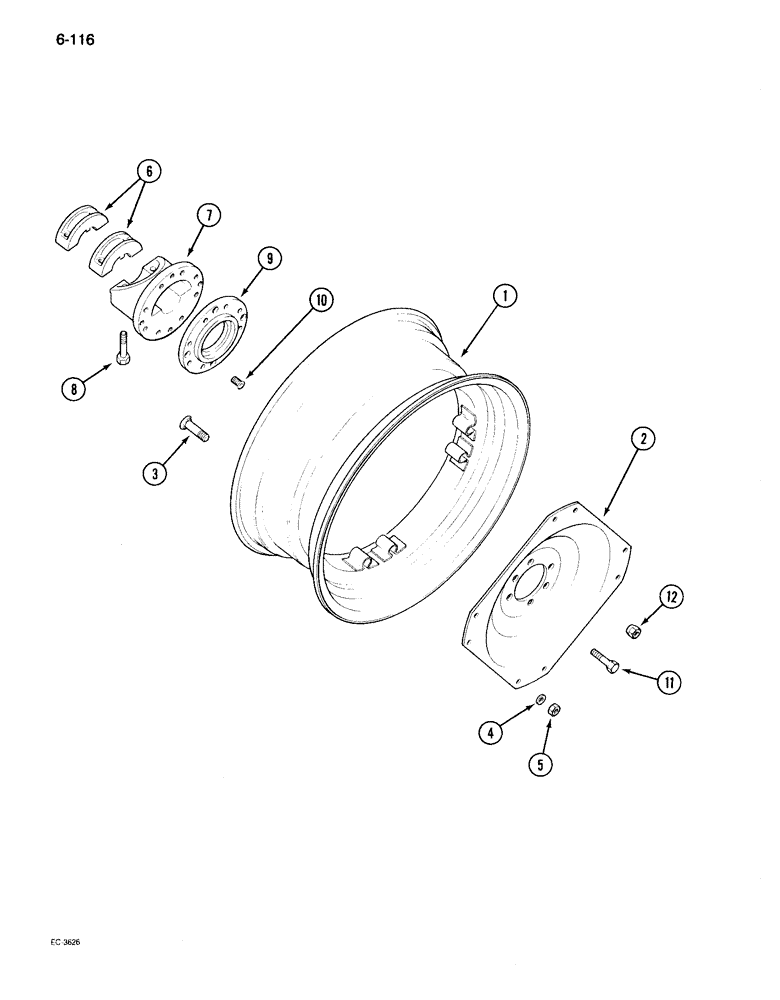

Схема запчастей Case IH 895 - (6-116[2]) - REAR WHEELS, HUB CLAMP FOR BAR TYPR AXLE (06) - POWER TRAIN
8
3
12
11
5
6
9
7
4
1
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

6

389539R1

CLAMP

- rear wheel hub

4шт.

7

530504R1

HUB

- rear wheel

2шт.

8

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head

8шт.

9

365957R3

FLANGE

- pilot, rear wheel hub

2шт.

10

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot flange mounting

8шт.

11

365397R3

WHEEL BOLT

BOLT - rear wheel mounting

16шт.

Выбрано товаров: 6
