(6-116[1]) - REAR WHEELS, 38 INCH WHEEL

Запчасти Case IH 895 (6-116[1]) - REAR WHEELS, 38 INCH WHEEL (06) - POWER TRAIN

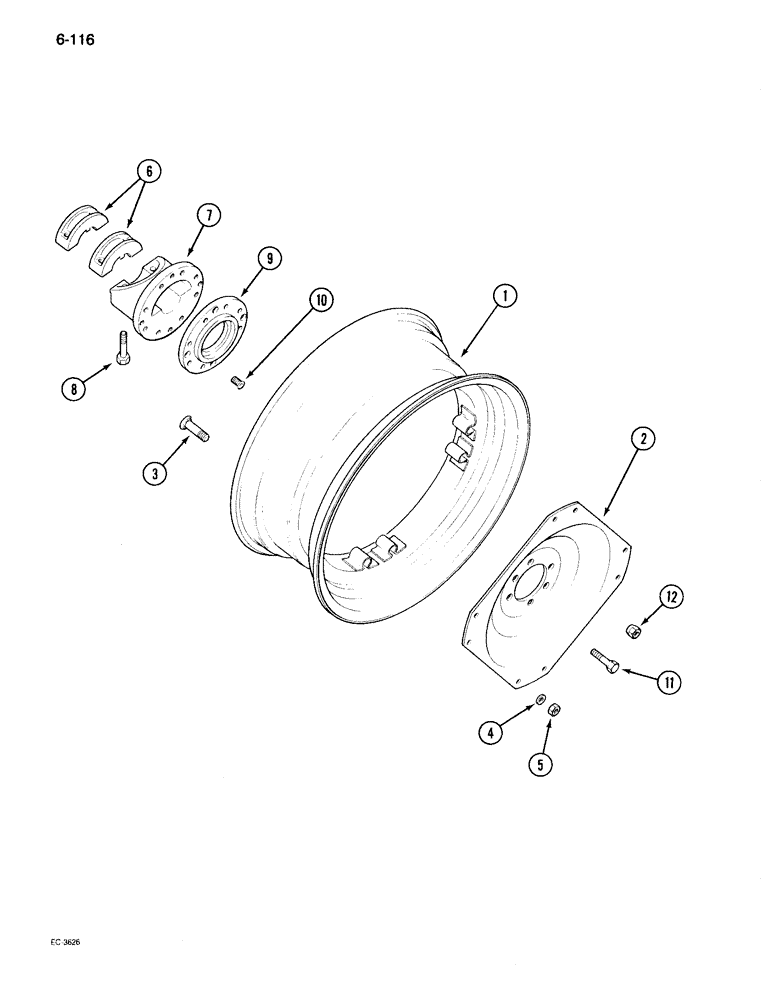

Схема запчастей Case IH 895 - (6-116[1]) - REAR WHEELS, 38 INCH WHEEL (06) - POWER TRAIN
3
6
11
1
5
2
10
8
9
4
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

WHEEL - complete, DW11-38 (For 13.6-34)

2шт.

1

1265244C1

RIM

- wheel, DW11-38

1шт.

2

1265242C1

DISC, WHEEL

DISC - wheel, 36 inch

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm, grade 8.8

8шт.

4

1332731C1

WASHER

8шт.

5

1332732C1

NUT

- hex, 16 mm, grade 8

8шт.

12

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.

Выбрано товаров: 7
