Запчасти Case IH 895 (6-114) - REAR WHEELS, 30 INCH HEAVY DUTY WHEELS (06) - POWER TRAIN

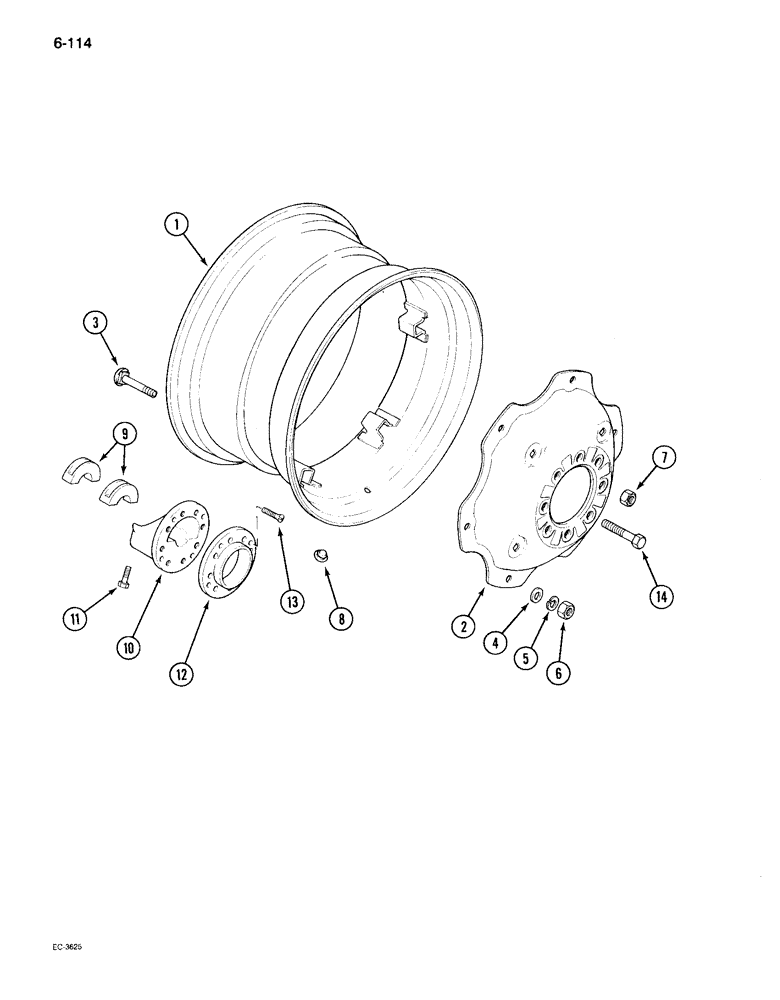

Схема запчастей Case IH 895 - (6-114) - REAR WHEELS, 30 INCH HEAVY DUTY WHEELS (06) - POWER TRAIN
12
7
6
9
11
3
8
5
13
1
14
4
2
10

Артикул

Название

Примечание

Количество

1

395856R2

RIM

- wheel, DW14-30 (For 16.9 x 30 tire)

2шт.

2

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheels

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.

8

383697R1

PLUG

- valve hole

1шт.

1

395855R2

RIM

- wheel, DW16-30 (For 18.4 x 30 tire)

2шт.

2

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.

8

383697R1

PLUG

- valve hole

1шт.

9

389539R1

CLAMP

- rear wheel hub, clamp for bar type axle

4шт.

10

530504R1

HUB

- rear wheel, hub clamp for wheel type axle

2шт.

11

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, hub clamp for wheel type axle

8шт.

12

365957R3

FLANGE

- pilot, rear whee hub, clamp for wheel type axle

2шт.

13

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot, flange mounting, hub clamp for wheel type axle

8шт.

14

1343216C1

BOLT,Hex, 5/8" - 18 x 66.04mm, Gr 5

BOLT - rear wheel mounting, hub clamp for wheel type axle

12шт.

14A, 365397R3, See comments in computer

1шт.

14

391004R2

BOLT,Hex, 5/8" - 18 x 1.75"

BOLT - rear wheel mounting, hub clamp for wheel type axle

4шт.
