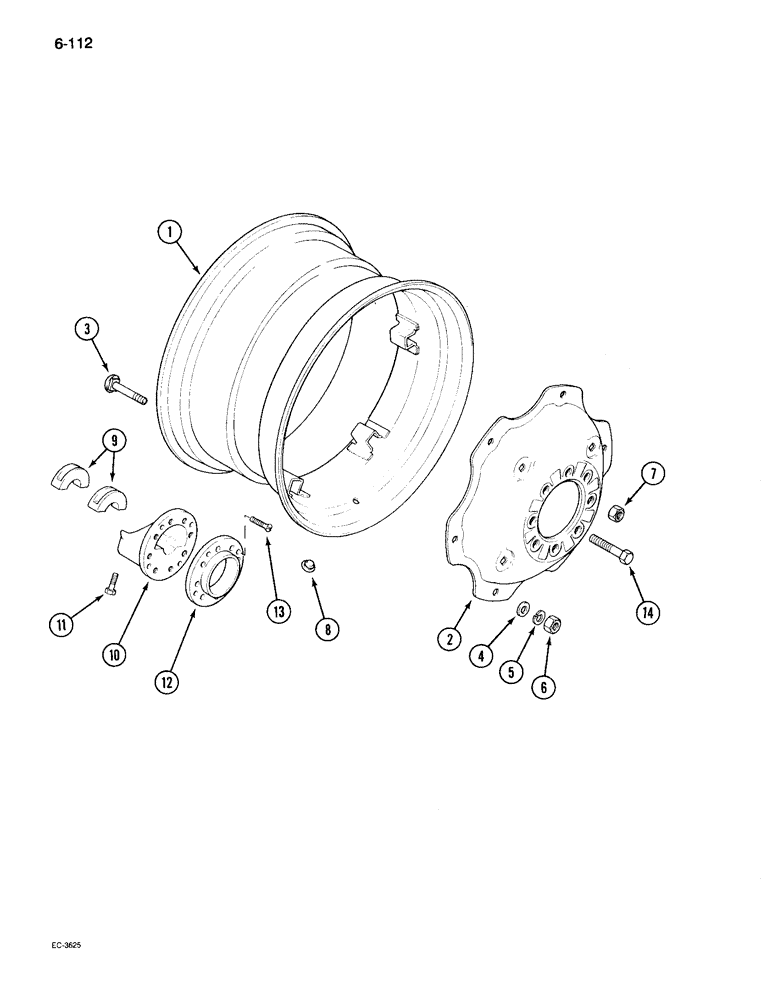

Запчасти Case IH 895 (6-112) - REAR WHEELS, 26 INCH WHEELS (06) - POWER TRAIN

1

3129777R1

RIM

- wheel, DW16-26 (For 18.4 x 26 tire)

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150R1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining (Not used with bar type axle)

16шт.

8

383697R1

PLUG

- valve hole

1шт.
