(6-112[2]) - REAR WHEELS, HUB CLAMP FOR BAR TYPE AXLE

Запчасти Case IH 895 (6-112[2]) - REAR WHEELS, HUB CLAMP FOR BAR TYPE AXLE (06) - POWER TRAIN

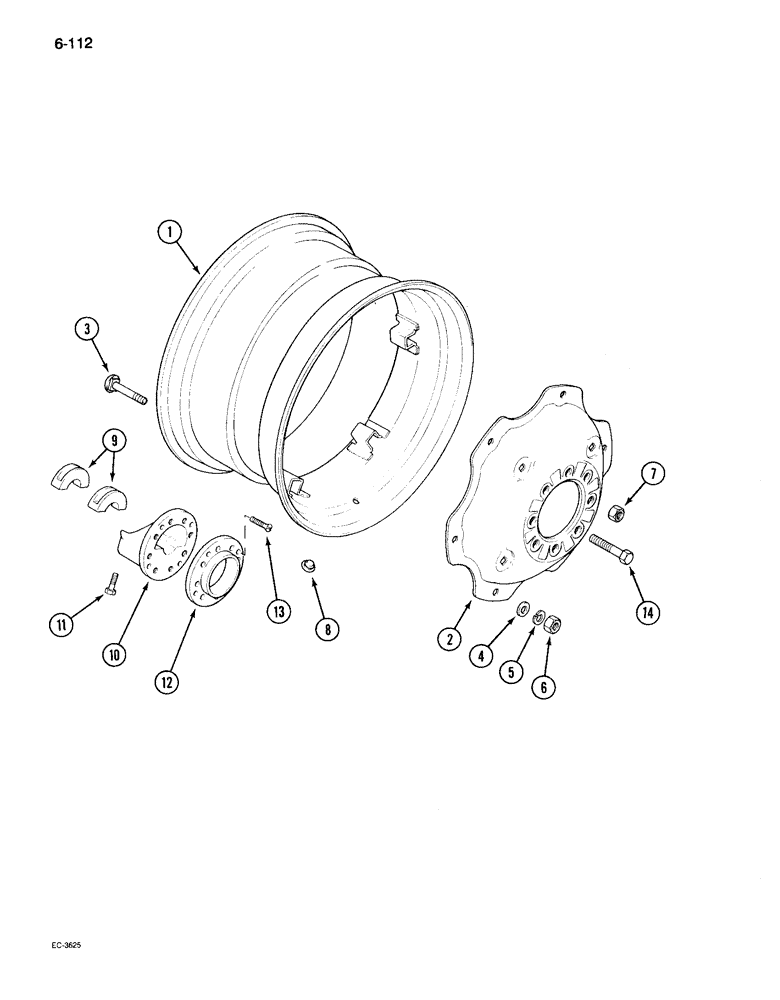

Схема запчастей Case IH 895 - (6-112[2]) - REAR WHEELS, HUB CLAMP FOR BAR TYPE AXLE (06) - POWER TRAIN
4
1
5
10
9
11
7
14
2
13
3
8
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

9

389539R1

CLAMP

- rear wheel hub

4шт.

10

530504R1

HUB

- rear wheel

2шт.

11

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head

8шт.

12

365957R3

FLANGE

- pilot, rear wheel hub

2шт.

13

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot, flange mounting

8шт.

14

365397R3

WHEEL BOLT

BOLT - rear wheel mounting

16шт.
