(6-110[2]) - REAR WHEELS, 28 INCH DUAL WHEELS

Запчасти Case IH 895 (6-110[2]) - REAR WHEELS, 28 INCH DUAL WHEELS (06) - POWER TRAIN

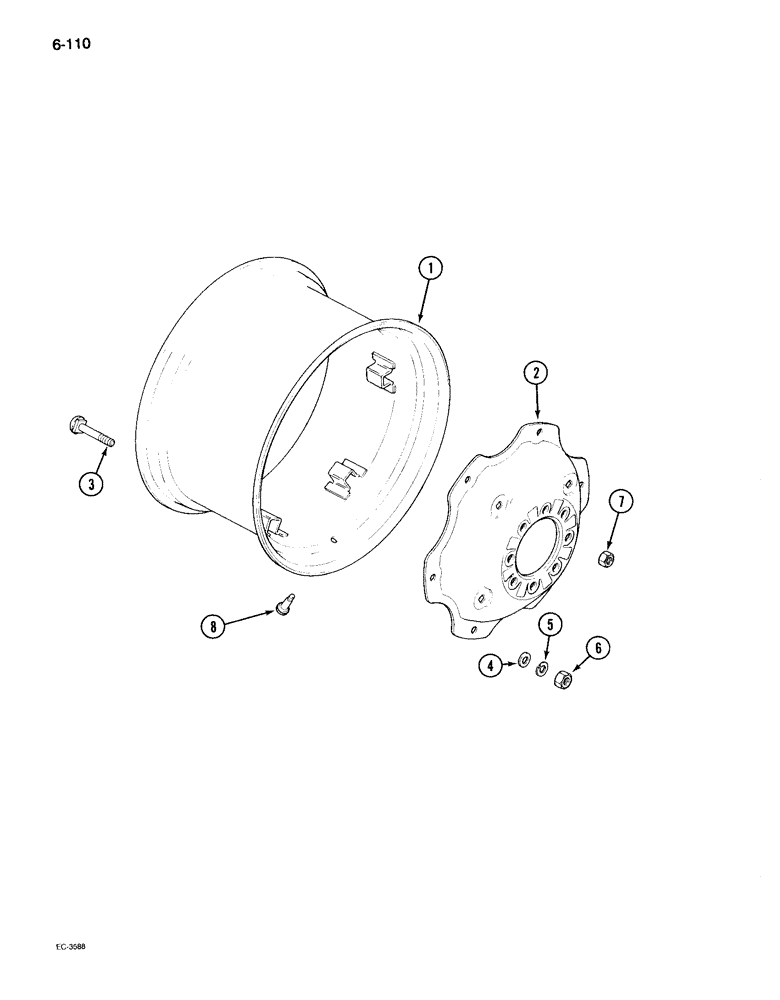

Схема запчастей Case IH 895 - (6-110[2]) - REAR WHEELS, 28 INCH DUAL WHEELS (06) - POWER TRAIN
4
8
5
1
6
2
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

363988R92

RIM

- wheel, W12-28 (For 14.9 x 28 tire) (Order G45710)

4шт.

2

361724R1

WHEEL DISC

DISC - 26 and 28 inch wheel (Order 1333149C1)

4шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

24шт.

4

492-21062

LOCK WASHER,5/8"

24шт.

5

492-21062

LOCK WASHER,5/8"

24шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

24шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

24шт.
