Запчасти Case IH 895 (6-108) - REAR WHEELS, 24 INCH WHEELS (06) - POWER TRAIN

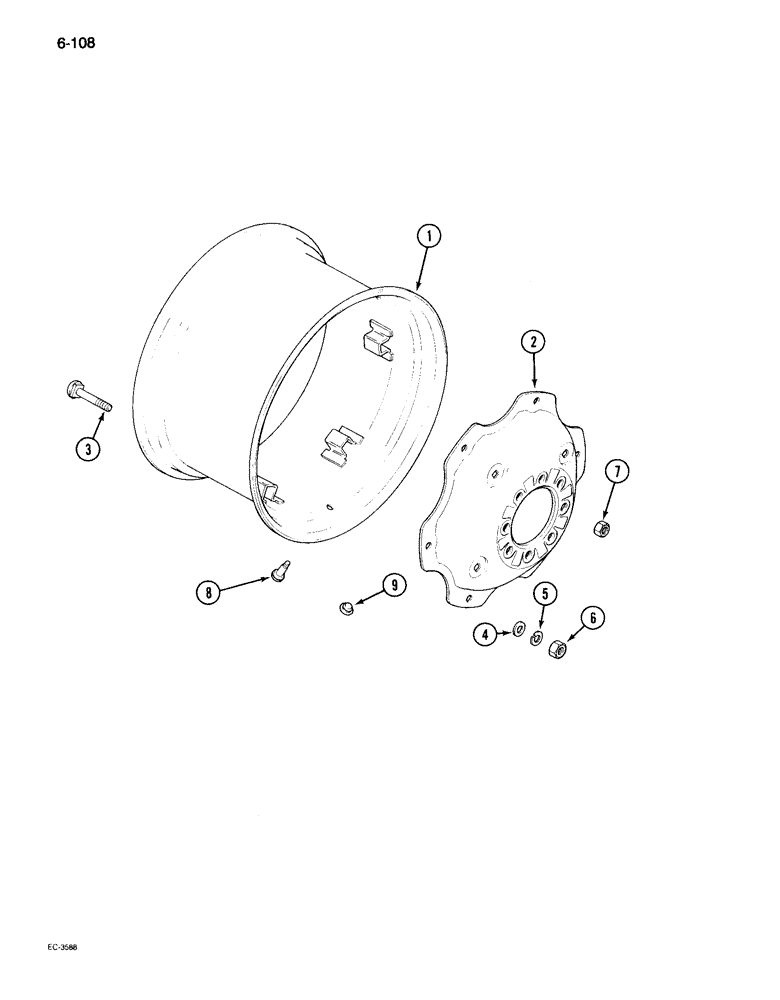

Схема запчастей Case IH 895 - (6-108) - REAR WHEELS, 24 INCH WHEELS (06) - POWER TRAIN
4
9
2
1
3
6
7
8
5

Артикул

Название

Примечание

Количество

1

374808R92

RIM

- wheel, W12 x 24 (For 13.6 x 24 or 14.9 x 24 tires) (Order D72304)

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NC, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire)

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

2шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

8

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058)

2шт.
