Запчасти Case IH 895 (6-108[1]) - REAR WHEELS, 24 INCH HEAVY DUTY WHEELS (06) - POWER TRAIN

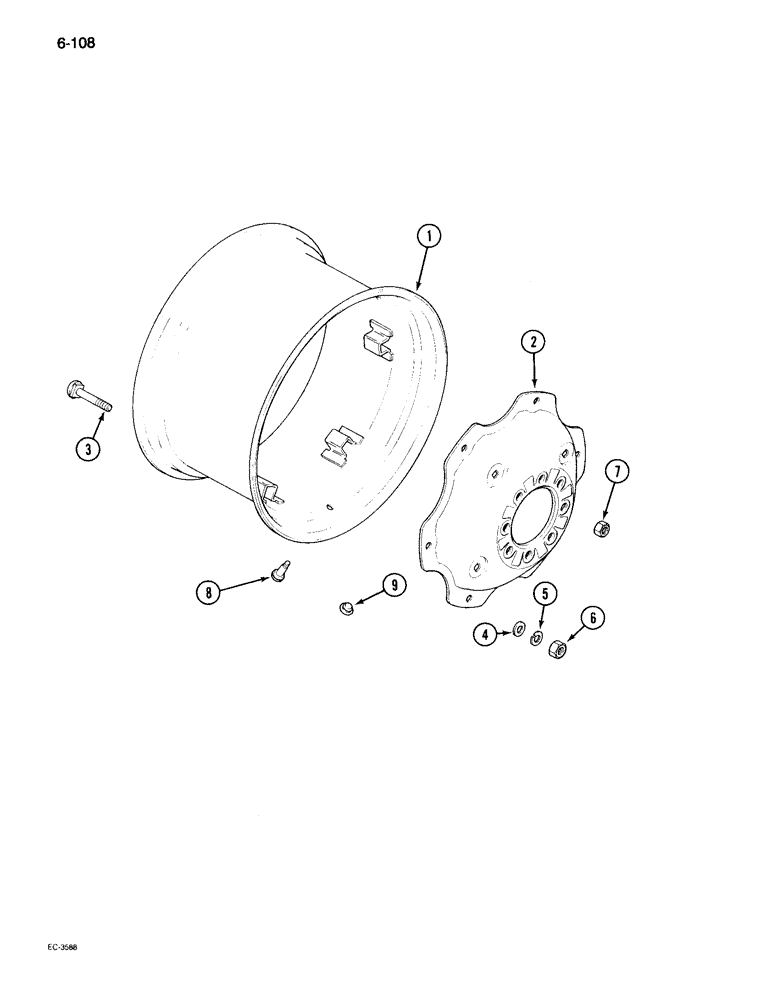

Схема запчастей Case IH 895 - (6-108[1]) - REAR WHEELS, 24 INCH HEAVY DUTY WHEELS (06) - POWER TRAIN
1
5
2
3
7
4
6
9
8

Артикул

Название

Примечание

Количество

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire)

2шт.

2

1333150C1

DISC, WHEEL

DISC - 24 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

2шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

9

383697R1

PLUG

- valve hole

1шт.

Выбрано товаров: 9
