Запчасти Case IH 895 (6-106) - REAR WHEELS, INTEGRAL DISC TYPE, 16 INCH WHEELS (06) - POWER TRAIN

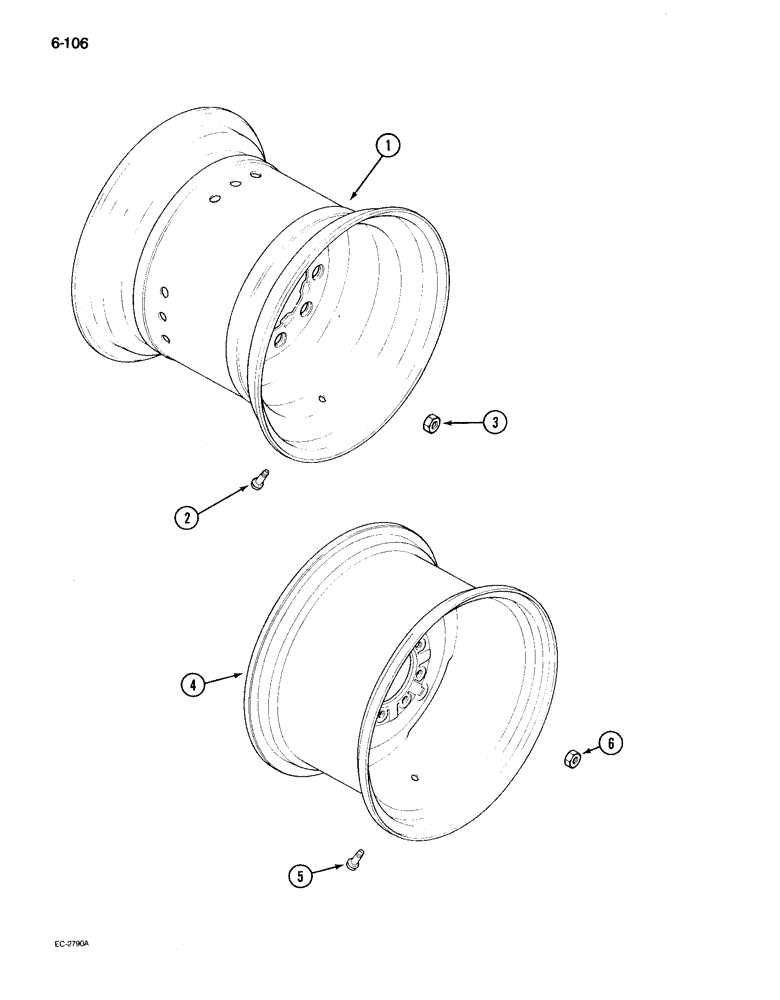

Схема запчастей Case IH 895 - (6-106) - REAR WHEELS, INTEGRAL DISC TYPE, 16 INCH WHEELS (06) - POWER TRAIN
4
2
5
3
6
1

Артикул

Название

Примечание

Количество

1

386078R92

RIM

WHEEL ASSEMBLY - rear, 16LB-16.1 (For 18.4 x 16.1 or 21.5 x 16.1 tires)

2шт.

2

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058)

2шт.

3

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

4

1541719C1

RIM

WHEEL ASSEMBLY - rear, W12-24 (For 14.9 x 24) 24 inch wheels

2шт.

5

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058), 24" wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining 24 inch wheels

16шт.

4

1288036C1

WHEEL ASSY.

WHEEL ASSEMBLY - rear, W15L-25 (For 16.9 x 24 tire) 24 inch wheels

2шт.

5

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058), 24" wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining 24 inch wheels

16шт.

4

376197R91

WHEEL ASSY.

WHEEL ASSEMBLY - rear, W12-28 (For 14.9 x 28) 28 inch wheels

2шт.

5

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058), 28" wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining 28 inch wheels

16шт.

4

1288037C1

WHEEL

ASSEMBLY - rear, W15L-28 (For 16.9 x 28 tire) 28 inch wheels

2шт.

5

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058), 28" wheels

2шт.

6

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining 28 inch wheels

16шт.

Выбрано товаров: 15
