Запчасти Case IH 895 (6-104) - POWER TAKE OFF CONTROL, TRACTOR WITH CAB (06) - POWER TRAIN

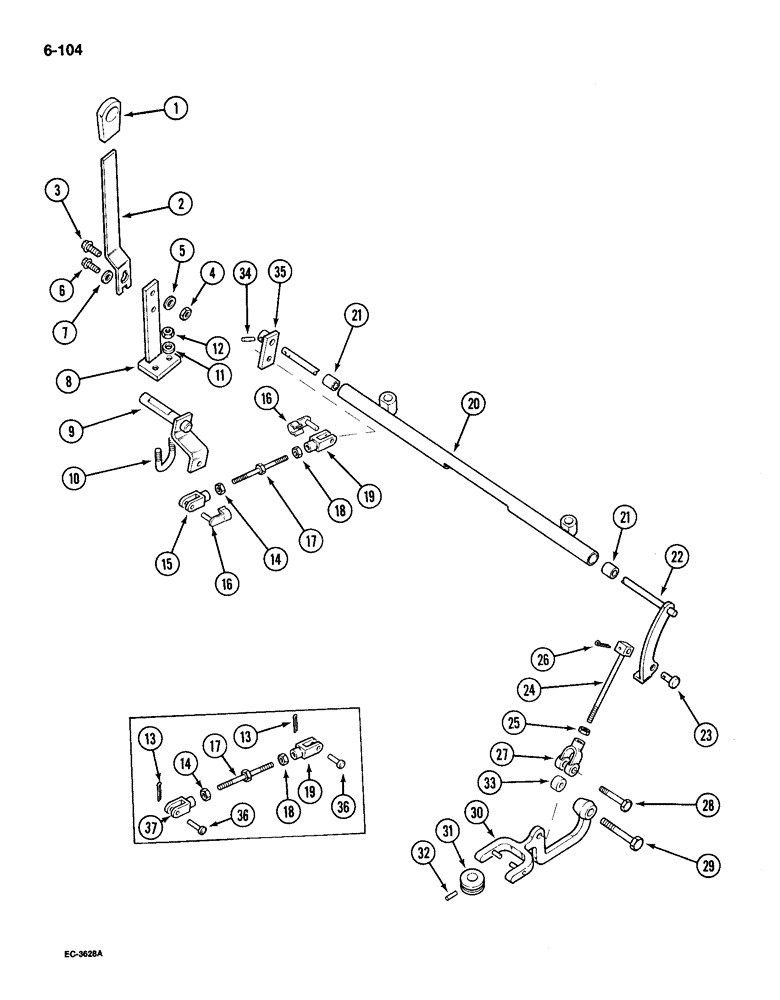

Схема запчастей Case IH 895 - (6-104) - POWER TAKE OFF CONTROL, TRACTOR WITH CAB (06) - POWER TRAIN
17
16
36
11
2
37
19
5
3
16
6
20
8
1
25
9
10
21
14
23
36
33
28
19
32
13
34
13
14
27
4
21
29
35
12
18
7
18
30
24
17
15
22
26
31

Артикул

Название

Примечание

Количество

1

99859C1

BUTTON

KNOB - control, yellow

1шт.

2

80341C1

LEVER

- upper IPTO

1шт.

3

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 16 mm

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

80340C1

LEVER

- lower IPTO

1шт.

9

1287367C1

ARM ASSY.

ARM - assembly

1шт.

10

3129349R1

U-BOLT,M8 x 1.25 x 36.25mm

BOLT - U-type, 8 mm

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25, class 10

2шт.

13

732-1612

COTTER PIN,M1.6 x 12

PIN - cotter, 1.6 x 12 mm

2шт.

1537787C1

ROD, ADJUSTMENT

TURNBUCKLE ASSEMBLY, Includes: Refs. 14 - 19

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

15

713-116

ADJUSTABLE CLEVIS

CLEVIS - 6 mm x 24 mm

1шт.

16

3234936R1

CLEVIS PIN

PIN - clip on

2шт.

17

1536908C1

ROD

TURNBUCKLE - IPTO control

1шт.

18

1536921C1

NUT

- hex, 6 mm, class 10, left hand thread

1шт.

19

1536920C1

ADJUSTABLE CLEVIS

CLEVIS - 6 mm x 24 mm, left hand thread

1шт.

20

1282949C91

SUPPORT ASSY.

SUPPORT - IPTO control shaft, Includes: Ref. 21

1шт.

21

528839R1

BUSHING

- control shaft support

2шт.

22

1283446C1

SHAFT ASSY.

SHAFT - crossover

1шт.

23

535453R1

PIN

- IPTO rod

1шт.

24

535450R1

ROD ASSY.

ROD - IPTO control

1шт.

25

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 NF

1шт.

26

32-620

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

1шт.

27

528837R1

CLEVIS,5/16" - 24

- IPTO control

1шт.

28

28024R1

BOLT,Hex, 1/4" - 28 x 7/8", Gr 8

- hex, 1/4 NF x 7/8 inch

1шт.

29

401754R1

BOLT,3/8" - 16 x 2.20"

- control arm pivot shaft

1шт.

30

94344C2

LEVER

- IPTO control

1шт.

31

530813R2

GUIDE BUSHING

COLLAR - IPTO control

1шт.

32

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

33

1970796C1

SPACER

- control clevis

1шт.

34

K657615

GROOVED PIN

PIN - grooved, 6 x 28 mm

1шт.

35

3129986R1

ARM ASSY.

ARM - crossover

1шт.

36

31137R1

CLEVIS PIN,M6 x 16

PIN - clevis, 6 x 16 mm

2шт.

37

3234763R1

ADJUSTABLE CLEVIS,M6

CLEVIS - 6 mm x 24 mm

1шт.

Выбрано товаров: 38
