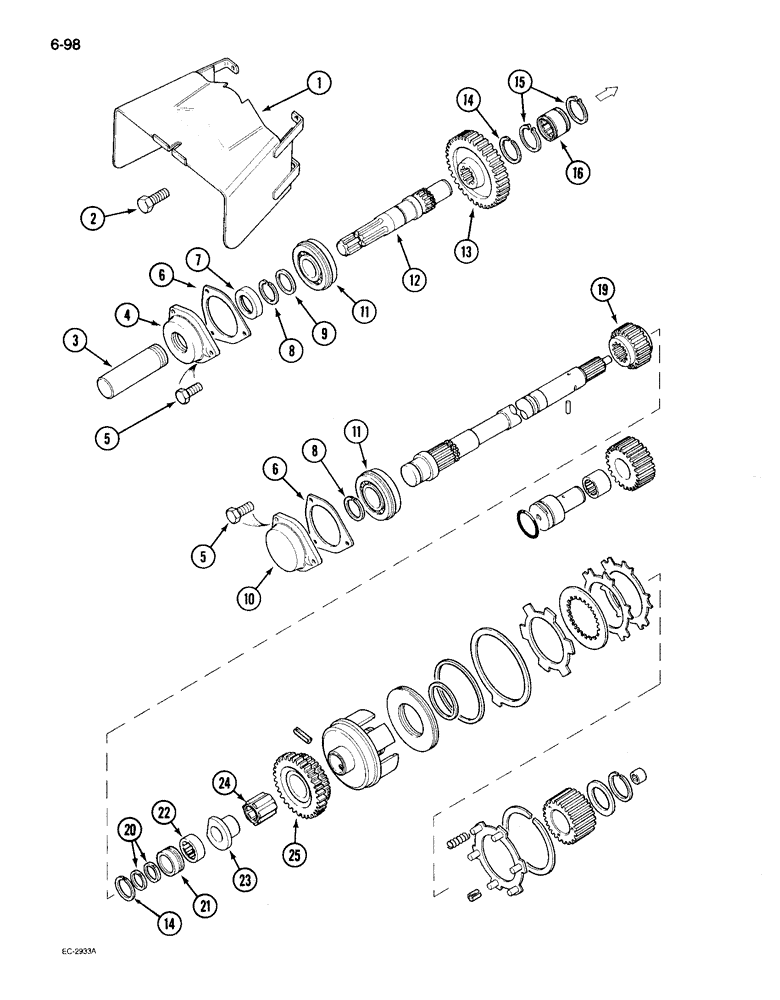

Запчасти Case IH 895 (6-098) - INDEPENDENT POWER TAKE OFF, SINGLE AND DUAL SPEED (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD ASSEMBLY - IPTO safety

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

1537007C1

TUBE

CAP - protection, IPTO safety (Single speed)

1шт.

3

1537007C1

TUBE

CAP - protection, IPTO safety (Dual speed)

2шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft (Single speed)

1шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft (Dual speed)

2шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

6

1970891C1

GASKET

- flange, rear frame IPTO cover

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft (Single speed)

1шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft (Dual speed)

2шт.

8

607186R1

SNAP RING,#156, Ext

2шт.

9

1500085C1

WASHER

- thrust

1шт.

10

66191C1

FLANGED BEARING

- bearing, IPTO shaft (Single speed)

1шт.

11

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BEARING - ball

2шт.

12

1500087C1

SHAFT

- upper, IPTO output

1шт.

13

1342557C2

PINION

GEAR - upper driven, 38 teeth

1шт.

14

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

2шт.

15

202307R1

SNAP RING,#206, Ext

Retaining, 1.906" #206, Ext

2шт.

16

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

- needle, top shaft

1шт.

19

1342558C2

PINION

GEAR - drive, lower shaft, 21 teeth

1шт.

20

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

- shaft sealing

2шт.

21

93506C1

BUSHING

- lower shaft

1шт.

22

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

- needle

1шт.

23

82499C2

BUSHING

- double idler gear (MFD tractor)

1шт.

24

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

- needle (MFD tractor)

1шт.

25

82666C1

GEAR

- double idler (MFD tractor)

1шт.
