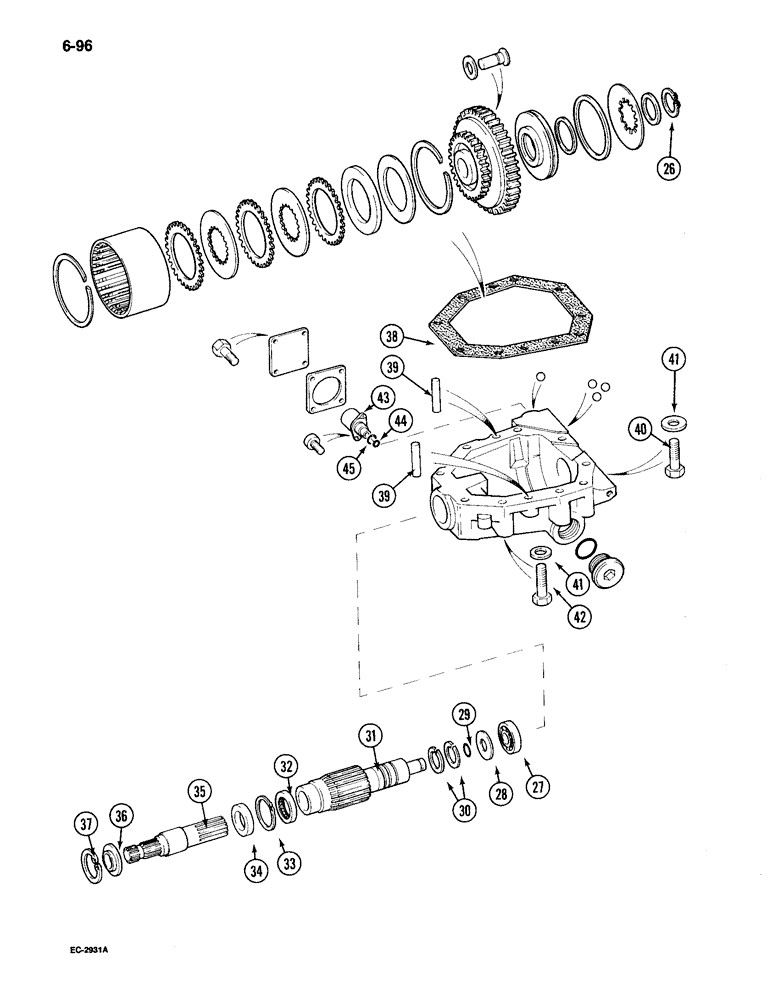

Запчасти Case IH 895 (6-096) - MECHANICAL FRONT DRIVE, TRANSFER GEARBOX (06) - POWER TRAIN

26

933283R1

SNAP RING,M45, Ext

RING - retaining, external, 40.72 mm

1шт.

27

1536482C1

BEARING, ROLLER, CYL,19.99mm ID x 52mm OD x 15mm W

BEARING - roller

1шт.

28

81089C2

THRUST WASHER

WASHER - thrust

1шт.

29

81182C3

RING

- 19 x 1.5 mm

1шт.

30

81191C1

SEALING RING

RING - 35 x 2 mm

2шт.

31

81192C1

SHAFT

- drive

1шт.

32

81093C2

BEARING, ROLLER

BEARING - roller

1шт.

33

933237R1

SNAP RING,M55, Int

RING - retaining, internal, 55 x 2 mm

1шт.

34

81086C2

OIL SEAL,37mm ID x 56mm OD x 10mm Thk

- oil

1шт.

35

81158C2

SHAFT

- output

1шт.

24 splines large end, 21 splines narrow end if dealer needs shaft with 24 splines on each end P/N is 81194C2

1шт.

36

81087C2

SNAP RING

RETAINER - output shaft

1шт.

37

934443R1

SNAP RING,M58, Int

RING - retaining, internal, 61.74 mm

1шт.

38

1970896C1

GASKET

- transfer gear box

1шт.

39

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

40

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

5шт.

41

396-21053

WASHER,17/32" x 1 1/16" x .134"

9шт.

42

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

43

81171C1

VALVE

- solenoid, control, Includes: Refs. 44 and 45

1шт.

44

102459A1

O-RING

- 13 mm diameter

1шт.

45

102460A1

O-RING,1.5mm Thk x 21mm ID

- 21 mm diameter

1шт.
