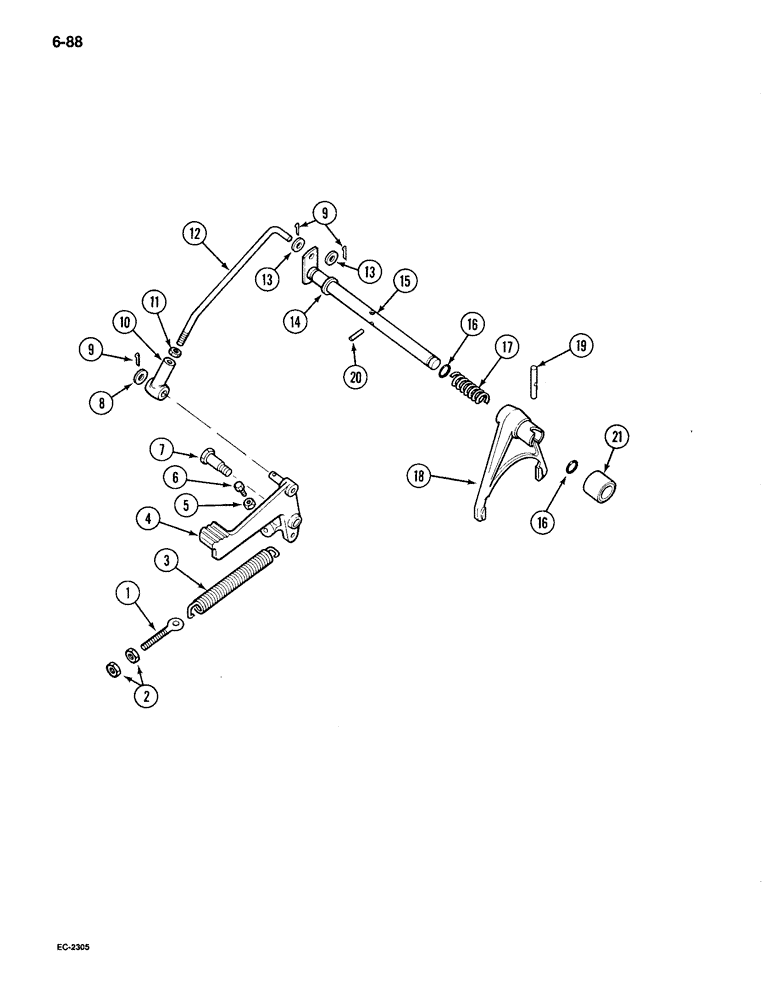

Запчасти Case IH 895 (6-088) - DIFFERENTIAL LOCK, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

100998A1

BOLT

BOLT - eye, pedal return spring

1шт.

2

425-106

NUT,3/8"-16, Cl 5

2шт.

3

3121849R2

SPRING

- return, differential lock pedal

1шт.

4

66441C1

PEDAL

- differential lock

1шт.

5

25-104

NUT,1/4"-20, G5

1шт.

6

1282707C1

BOLT,1/4" - 20 x 1", Full Thd

BOLT - pedal adjusting, special, 1/4 x 1 inch

1шт.

7

527885R1

BOLT

BOLT - pivot, differential lock pedal

1шт.

8

95-81058

WASHER,17/32" x 7/8" x .060"

- flat, 17/32 x 7/8 x 3/64 inch

1шт.

9

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

3шт.

10

527880R1

END

- connecting, differential lock pedal

1шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

12

527879R1

ROD

- differential lock pedal

1шт.

13

95-51041

WASHER,3/8" x 7/8" x .083"

- plain, 13/32 x 3/4 x 3/64 inch

2шт.

14

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

14

95-81020

WASHER,25/32" x 1 1/4" x .030"

- flat, 23/32 x 1-1/4 x 1/32 inch

1шт.

15

1289507C1

SHAFT

ASSEMBLY - differential lock

1шт.

15

1500384C1

SHAFT ASSY.

SHAFT ASSEMBLY - differential lock (Orchard tractor)

1шт.

16

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

17

527878R1

SPRING

- actuating, differential lock fork

1шт.

18

1500386C1

FORK

- differential lock shaft

1шт.

19

1500388C2

PIN

- differential lock, cam actuating

1шт.

20

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

21

94272C2

BUSHING

- rear frame adaptor (2WD tractor)

1шт.
