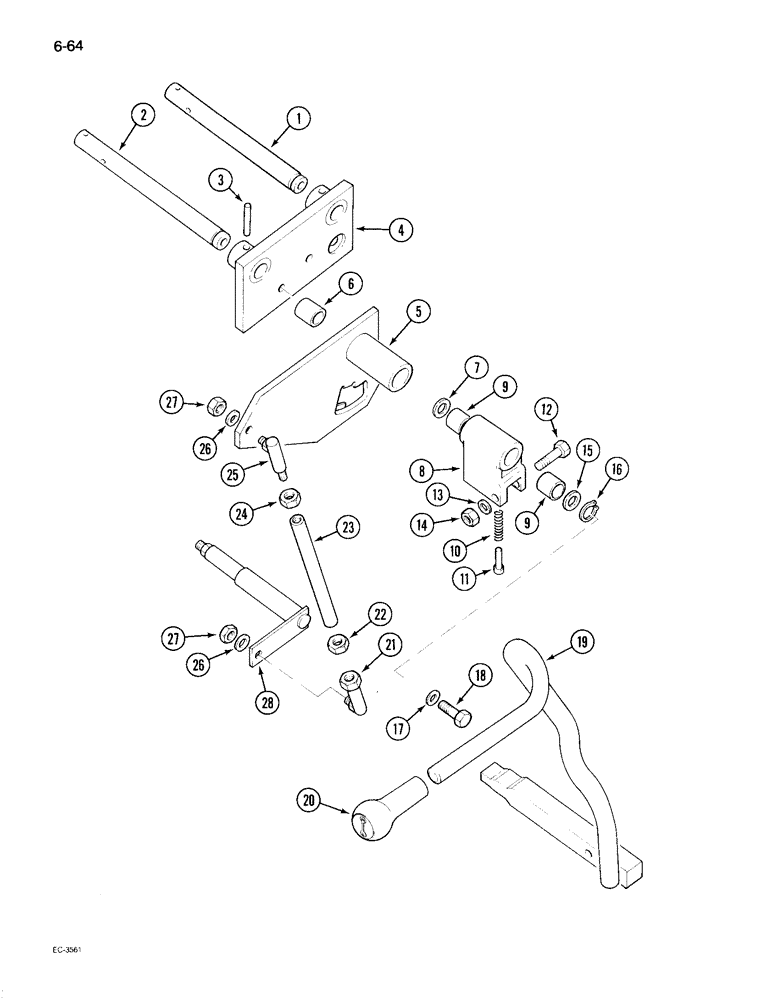

Запчасти Case IH 895 (6-064) - TRANSMISSION RANGE SHIFT CONTROLS, TRACTOR WITH CAB, WITH FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
1281602C1
SHAFT
- pivot, speed shift lever (See Fig. 6-56)
1шт.
2
1283218C1
SHAFT
- pivot, range shift lever
1шт.
3
617941R1
PIN,5/16" x 2", Coiled
1шт.
4
1283219C1
PLATE ASSY.
PLATE - shift pivot (See Fig. 6-56)
1шт.
5
1343135C1
LEVER ASSY.
LEVER ASSEMBLY - range shift (Hi-Lo)
1шт.
6
1343137C2
SPACER
- lever
2шт.
7
95-81028
WASHER,0.91" ID x 1.25" OD x 0.03" Thk
- flat, 29/64 x 1-1/4 x 1/32 inch
1шт.
8
3129214R93
HOUSING ASSY.
HOUSING ASSEMBLY - selector arm, Includes: Ref. 9
1шт.
9
530815R1
BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L
-housing
2шт.
10
71486C1
SPRING
- compression
1шт.
11
22938R1
HEADED PIN,5/16" x 1/2"
PIN, HEADED, 5/16" x 1/2"
1шт.
12
1282929C1
BOLT,Hex, 3/8" - 16 x 6"
- Selector arm pivot
1шт.
14
9411655
LOCK NUT,3/8"-16, GB
NUT - hex lock, 3/8 inch NC, Grade 8
1шт.
15
95-81028
WASHER,0.91" ID x 1.25" OD x 0.03" Thk
- flat, 29/64 x 1-1/4 x 1/32 inch
1шт.
16
454331R1
SNAP RING,#87, Ext
1шт.
17
892-11010
LOCK WASHER,M10
2шт.
18
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
19
1283429C3
LEVER ASSY.
LEVER ASSEMBLY - range shift
1шт.
20
1343138C2
HANDLE
KNOB - range shift, (Hi-Lo)
1шт.
1281618C91
ROD ASSY.
ROD ASSEMBLY - range control (Forward and reverse), Includes: Refs. 21 - 25
1шт.
21
1282947C2
BALL JOINT
JOINT - ball, 10 mm, left hand thread
1шт.
22
825-12010
NUT,M10, Cl 8, LH
- hex, 10 mm - 1.5, left hand thread
1шт.
23
NSS
NOT SOLD SEPARAT
ROD - tie
1шт.
24
829-1310
NUT,M10, Cl 10
- hex, 10 mm - 1.5, class 10
1шт.
25
3129345R2
BALL JOINT
JOINT - ball, 10 mm
1шт.
26
895-10010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 21 x 2 mm
4шт.
27
832-41310
NUT,M10 x 1.5, Cl 10
NUT - hex, self-locking, 10 mm - 1.5, class 10
4шт.
28
1536518C1
ARM ASSY.
ARM ASSEMBLY - range shift (Hi-Lo)
1шт.
Выбрано товаров: 29
