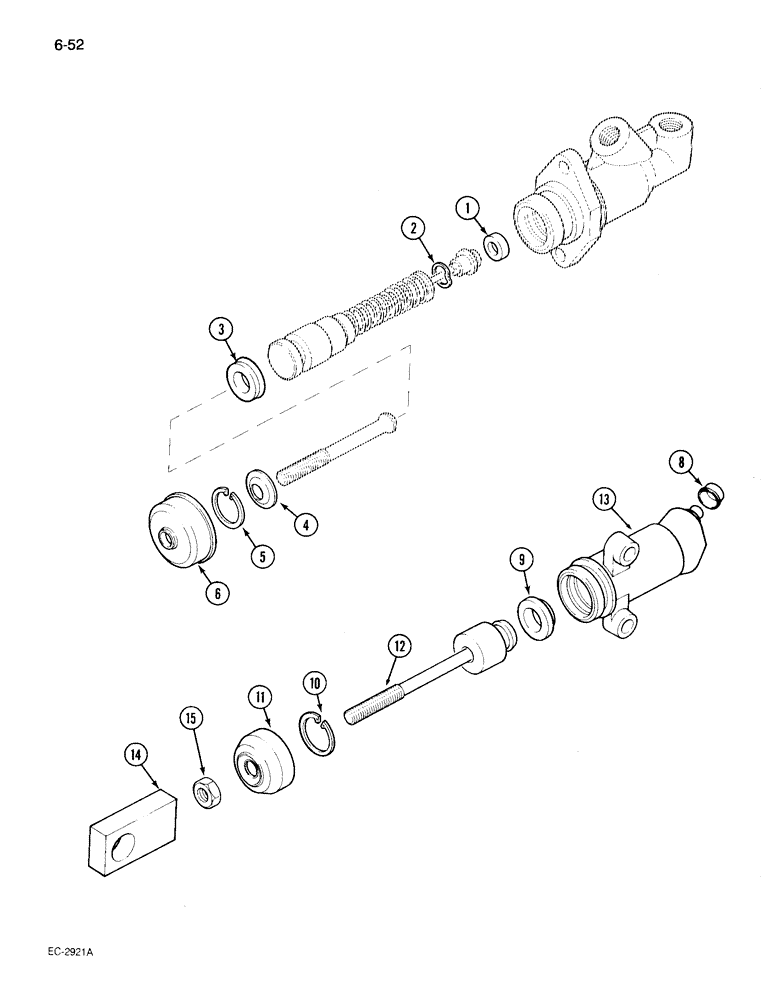

Запчасти Case IH 895 (6-052) - CLUTCH HYDRAULIC CYLINDERS, TRACTOR WITH CAB, CLUTCH MASTER CYLINDER (06) - POWER TRAIN

3129807R91

MASTER CYLINDER

CYLINDER - clutch master, Includes: Refs. 1 - 6 and service kit, P/N 80327C91

1шт.

86011371R

REMAN-MASTER CYLINDE

895 CASE IH TRACTOR (NORTH AMERICA), Cylinder Clutch Master, W/ Cab (1/90-12/94), Reman for New PN 3129807R91

1шт.

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

80327C91

KIT

- service, clutch master cylinder (Order N7602), Includes: Refs. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER - retaining

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - dust

1шт.

3129799R91

MASTER CYLINDER

CYLINDER - clutch slave, Includes: Refs. 8 - 15 and slave cylinder, P/N 3129800R91

1шт.

3129800R91

MASTER CYLINDER

CYLINDER - slave, Includes: Refs. 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - dust, clutch slave cylinder

1шт.

Part of slave cylinder service kit P/N 80318C91

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland, clutch slave cylinder

1шт.

Part of slave cylinder service kit P/N 80318C91

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining, clutch slave cylinder

1шт.

Part of slave cylinder service kit P/N 80318C91

1шт.

11

NSS

NOT SOLD SEPARAT

COVER - dust, clutch slave cylinder

1шт.

Part of slave cylinder service kit P/N 80318C91

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - piston, clutch slave cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder, clutch slave cylinder

1шт.

14

3129801R1

CLEVIS

EYE - connecting, clutch slave cylinder

1шт.

15

824-1410

NUT,M10, Cl 5

- lock 10 mm, clutch slave cylinder

1шт.

80318C91

GASKET KIT

KIT - service, slave cylinder, Includes: Ref. 8, 9, 10 and 11, clutch slave cylinder

1шт.
