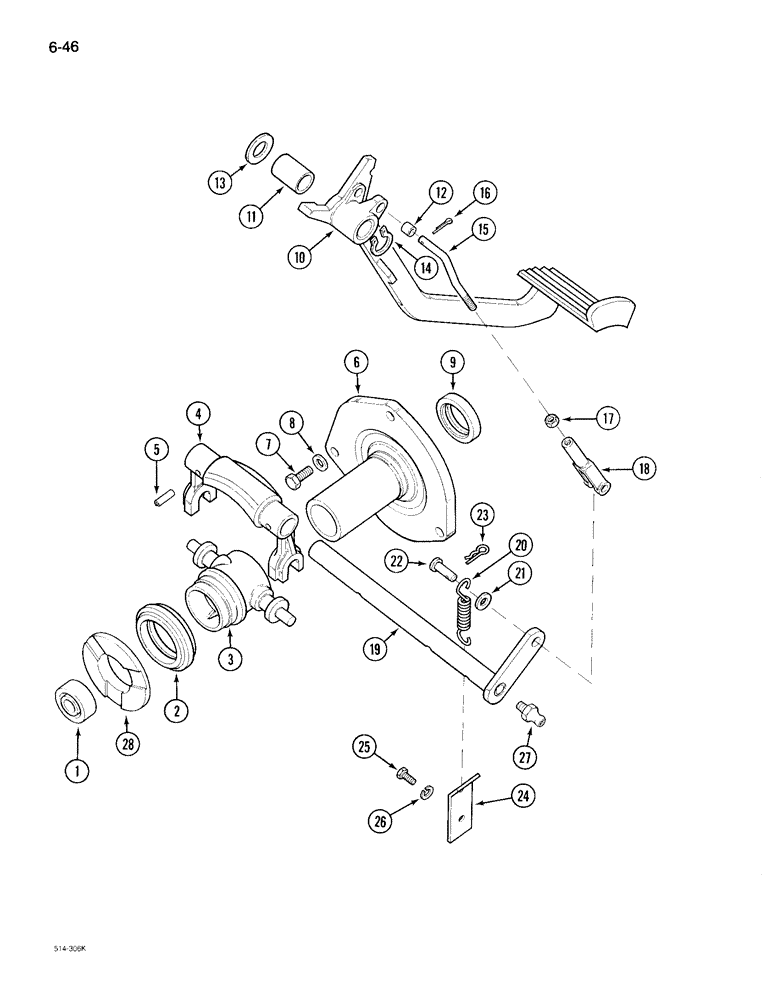

Запчасти Case IH 895 (6-046) - CLUTCH CONTROLS, TRACTOR WITHOUT CAB (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
69844C91
BEARING, BALL,20mm ID x 47mm OD x 14mm W
BEARING - ball, clutch pilot
1шт.
2
85104C91
BEARING, BALL
BEARING - ball, clutch release
1шт.
3
1970934C1
SLEEVE
- clutch release
1шт.
4
398342R2
CLUTCH FORK
FORK - clutch release
1шт.
5
617938R1
PIN,5/16" x 1 3/8", Coiled
2шт.
6
71229C2
SLIPPER
CARRIER - clutch release sleeve
1шт.
7
13-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
- hex, 3/8 NC x 1-3/8 inch
3шт.
9
108982C1
OIL SEAL
SEAL - oil
1шт.
10
1500212C93
PEDAL ASSY.
PEDAL ASSEMBLY - clutch, with bushing, Includes: Refs. 11 and 12
1шт.
11
530816R1
BUSHING,22.25mm ID x 25.48mm OD x 38.1mm L
- clutch pedal
1шт.
12
1500445C1
BUSHING,9.6mm ID x 15.03mm OD x 9.65mm L
- clutch operating rod
1шт.
13
495-81054
WASHER,0.91" ID x 1.38" OD x 0.06" Thk
- plain, 29/32 x 1-3/8 x 1/16 inch
1шт.
14
454331R1
SNAP RING,#87, Ext
1шт.
15
71086C1
ROD ASSY.
ROD ASSEMBLY - clutch operating
1шт.
16
38-812
PIN, SPLIT (COTTER)
PIN - cotter, 1/8 x 3/4 inch
1шт.
17
25-156
JAM NUT,Jam, 3/8"-24, G5
- hex jam, 3/8 inch NF
1шт.
18
1500764C1
CLEVIS
- adjustable, rod end
1шт.
18
104038
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
CLEVIS - light adjustable (Optional to 1500764C1)
1шт.
19
1288115C2
PIN
SHAFT ASSEMBLY - clutch release
1шт.
20
1500587C2
SPRING
- bearing pre-load
1шт.
21
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
1шт.
22
74158H
CLEVIS PIN,3/8" x 1.344"
PIN - clevis, 3/8 x 1-11/32 inch
1шт.
23
3114469R1
SPLIT PIN/SAFETY PIN
PIN - quick release
1шт.
24
1500594C1
PLATE
- spring anchor
1шт.
25
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1шт.
26
92-11050
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
27
219-45
LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF
FITTING - grease, 65 degree, 1/4 inch hole
2шт.
28
1970876C2
THRUST WASHER
WASHER - thrust
1шт.
Выбрано товаров: 29
