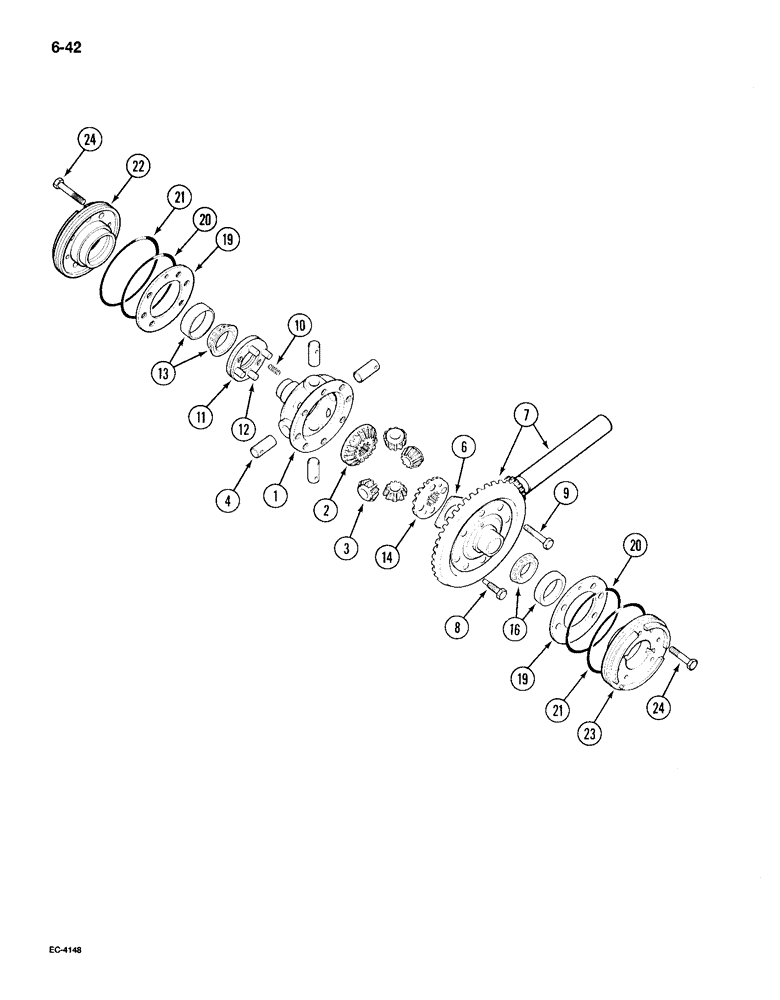

Запчасти Case IH 895 (6-042) - DIFFERENTIAL (06) - POWER TRAIN

1

399763R1

PINION CARRIER

CARRIER - differential

1шт.

2

404336R1

PINION

GEAR - bevel, differential, 20 teeth

1шт.

3

399776R1

PINION

GEAR - differential pinion, 10 teeth

4шт.

4

399804R1

PIN

- differential pinion

4шт.

6

399778R1

THRUST WASHER

- thrust, differential bevel gear

1шт.

7

94252C1

GEAR, BEVEL

GEAR - bevel, with matched shaft, 11/52 teeth

1шт.

8

399779R2

BOLT,Hex, 1/2" - 13 x 2.12", Gr 8

BOLT - dowel, hex, 1/2 NC x 2-1/8 inch

1шт.

9

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

7шт.

10

400867R1

SPRING

- differential lock

2шт.

11

399764R11

LOCKING RING

RING ASSEMBLY - differential lock, Includes: Ref. 12

1шт.

12

399765R1

PIN

- coupling

4шт.

13

105504H

TAPERED BEARING,57.163 mm ID x 96.863 mm OD x 21.2 mm

ASSEMBLY - roller, differential, right (Order 52843V)

1шт.

14

3129493R1

PINION

GEAR - bevel, differential

1шт.

16

105502H

TAPERED BEARING,2.25" ID x 3.8437" OD x 0.9688"

ASSEMBLY - roller, differential, left

1шт.

16

399766R91

ROLLER BEARING

BEARING ASSEMBLY - roller, Serial Range: (Optional-105502H)

1шт.

16

1502182C91

TAPERED BEARING,57.163 mm ID x 97.655 mm OD x 24.808 mm

ASSEMBLY - roller (Optional to 105502H)

1шт.

65419C1

BEARING CARRIER

KIT - service differential bearing carrier shims, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.012 inch

3шт.

19

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch

2шт.

20

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

- 7-1/2 ID x 3/16 inch wide

2шт.

21

238-6267

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

- 7-1/2 ID x 1/16 inch wide, class 6

2шт.

22

399770R2

BEARING CARRIER

CARRIER - differential bearing, right

1шт.

23

399769R2

BEARING CARRIER

CARRIER - differential bearing, left

1шт.

24

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.
