Запчасти Case IH 895 (6-034) - REAR FRAME, TOP COVER (06) - POWER TRAIN

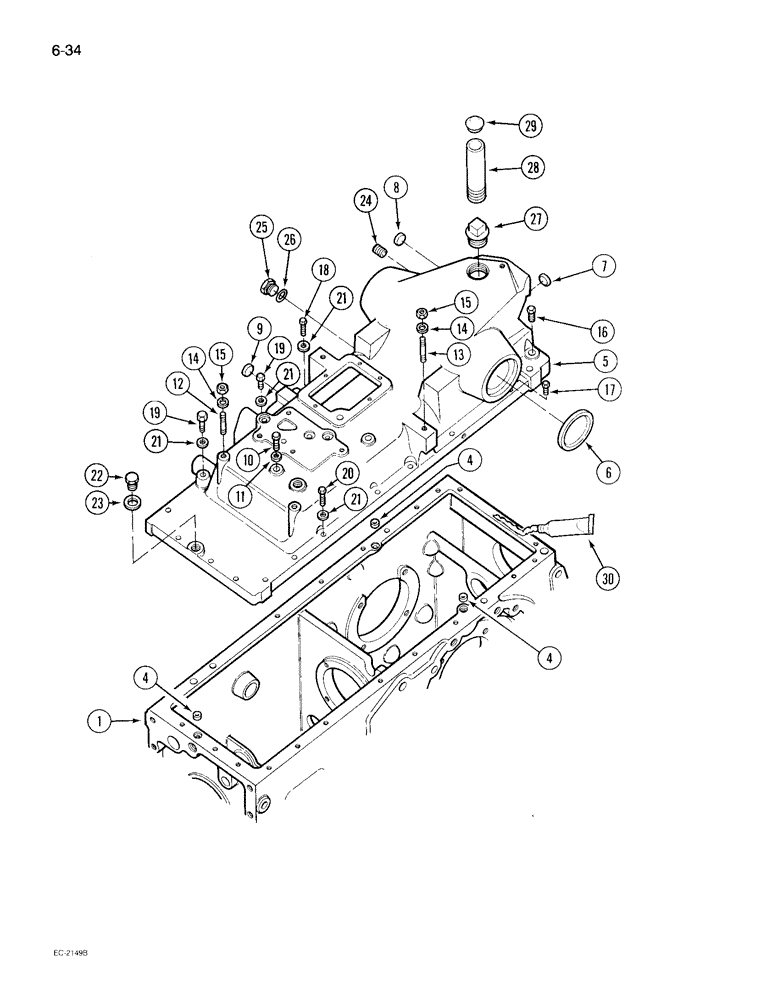

Схема запчастей Case IH 895 - (6-034) - REAR FRAME, TOP COVER (06) - POWER TRAIN
19
8
28
27
29
21
22
5
14
21
21
25
13
24
4
1
15
16
7
20
6
9
17
23
11
14
12
15
30
26
19
4
10
18
21
4

Артикул

Название

Примечание

Количество

1

1537332C1

FRAME ASSY

FRAME ASSEMBLY - rear (See Fig. 6-28)

1шт.

4

406734R3

SEALING RING

- teflon (Order 238-6110)

3шт.

5

406003R32

HOUSING ASSY.

HOUSING ASSEMBLY - hydraulic unit (With draft control) (See Fig. 8-44)

1шт.

5

529381R96

COVER ASSY

COVER ASSEMBLY - rear frame (Without hydraulic draft control)

1шт.

6

24469R1

PLUG,Cup, 3 1/4"

- cup, 3-1/4 inch

2шт.

7

373553R1

PLUG,Cup, 7/8"

- cup, 7/8 inch

1шт.

8

386194R1

PLUG,Cup, 3/4"

- cup, 3/4 inch

1шт.

9

41600D

PLUG,Cup, 1 1/8"

- cup, 1-1/8 inch (Order 21427R1)

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

11

231-1408

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

3шт.

12

531144R1

STUD

- top cover, short

2шт.

13

531143R2

STUD

- top cover, long

2шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.

16

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

4шт.

17

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch

2шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

20

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch

11шт.

21

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

22

536855R1

PLUG

- hex, 3/4 inch NF, O-ring boss

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

444697

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8 inch PTF (Order 217-436)

1шт.

25

9410359

PLUG

- hex, 3/4 inch NF O-ring boss

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - square head, 1-1/4 inch PTF without breather (Order 221-847), Start Serial: JJE0011771

1шт.

27

1537543C1

ADAPTER

PLUG - square head, 1-1/4 inch PTF with breather, Serial Range: -JJE0011771

1шт.

28

28747R1

PIPE,Nipple, 1 1/4" NPT x 7"

- filler extension, 1-1/4 x 7 inch (With cab)

1шт.

29

144162

HYDRAULIC MOTOR

- 1-1/4 inch dia. pipe (With cab)

1шт.

30

B17555

LOCTITE

SEALANT - Gasket Maker No. 515, 50 ml tube

1шт.

Выбрано товаров: 30
