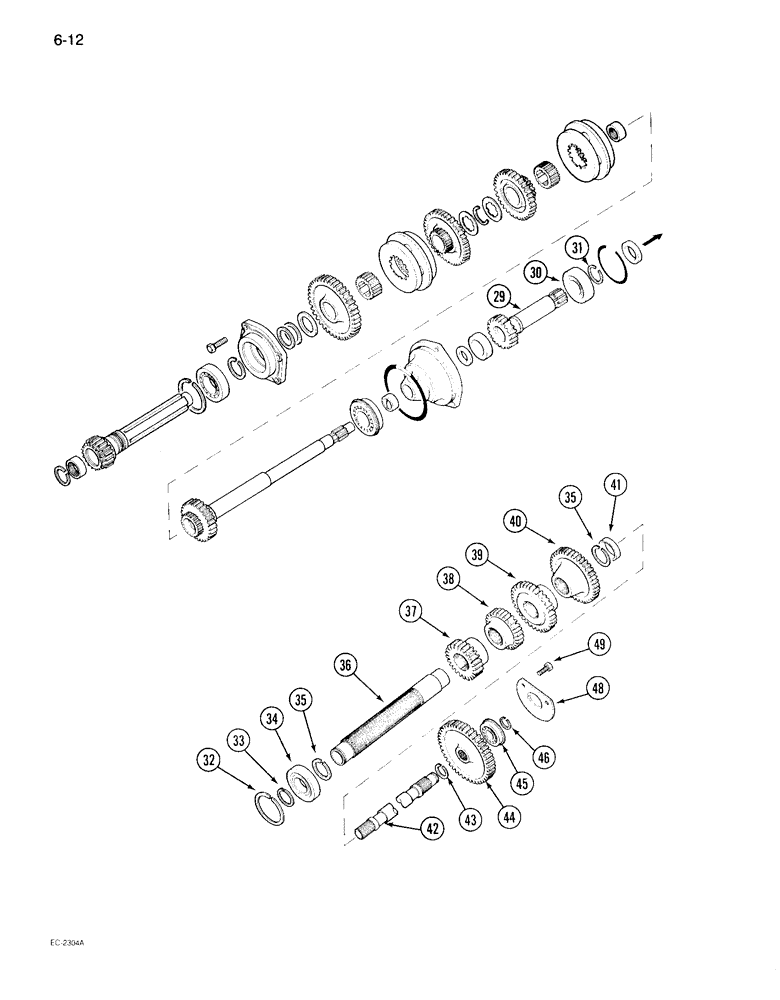

Запчасти Case IH 895 (6-012) - SPEED TRANSMISSION, WITHOUT CREEPER (06) - POWER TRAIN

29

1342556C2

SHAFT

- drive, IPTO, 21 teeth

1шт.

30

1342949C1

BEARING, ROLLER

BEARING - roller, IPTO drive shaft

1шт.

31

379511R1

SNAP RING,#177, 1.657", Ext

RING - retaining, external, 1.657 inch

1шт.

32

574964R1

RING, SNAP

RING - snap, countershaft bearing, inner

1шт.

33

379511R1

SNAP RING,#177, 1.657", Ext

RING - retaining, external, 1.657 inch

1шт.

34

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball, countershaft

1шт.

35

398264R1

SNAP RING,#215, 2.026", Ext

RING - retaining, external, 2.026 inch

2шт.

36

404089R2

SHAFT

- counter, speed transmission

1шт.

For tractors with 2 speed power shift See Fig. 6-18 For tractors with forward and reverse See Fig. 6-22

1шт.

37

404093R1

GEAR

- 1st speed drive, 26 teeth

1шт.

38

404092R1

PINION

GEAR - 2nd speed drive, 34 teeth

1шт.

39

404091R1

PINION

GEAR - 4th speed drive, 43 teeth

1шт.

40

404090R1

PINION

GEAR - constant mesh driven, 39 teeth

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING - needle, countershaft

1шт.

42

99439C1

SHAFT

- IPTO driven, front

1шт.

43

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

44

1342559C2

GEAR

- IPTO driven, 46 teeth

1шт.

45

1537146C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

- roller, IPTO driven shaft front

1шт.

46

A32438

SNAP RING

RING - retaining, IPTO driven shaft front bearing

1шт.

48

398259R1

LARGE PLATE

RETAINER - IPTO driven shaft front bearing cap

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.
