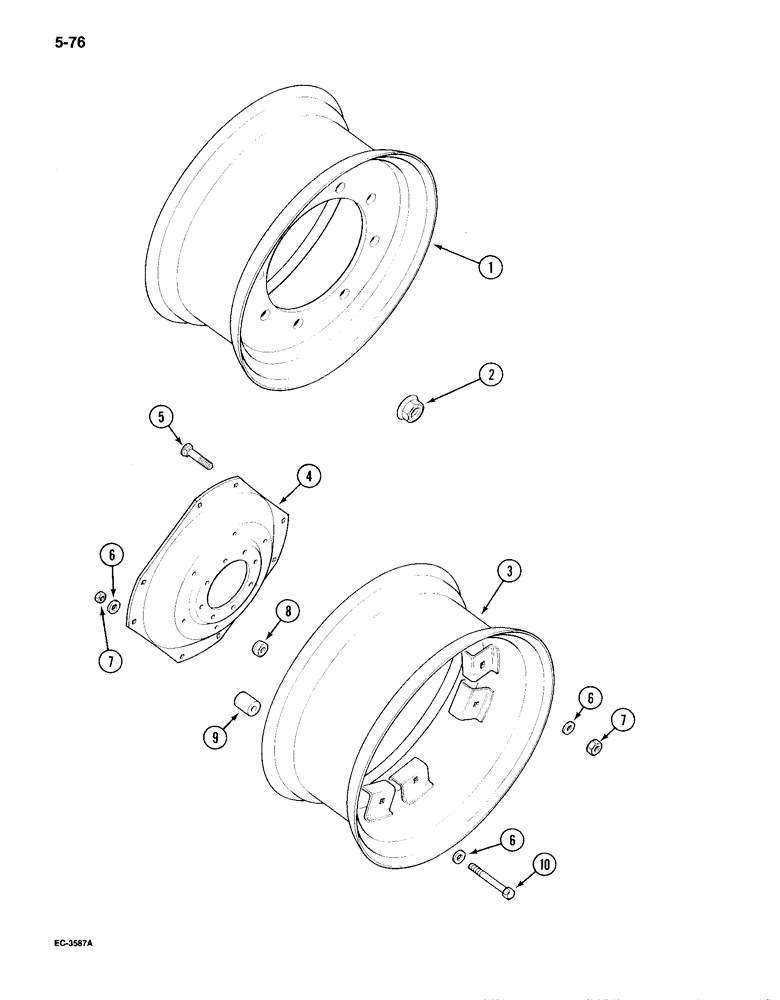

Запчасти Case IH 895 (5-76) - FRONT WHEELS, MFD TRACTOR, 16-1/2 INCH WHEELS (05) - STEERING

1

1343074C1

WHEEL

- front, 9.75-16.5 (For 12 x 16.5 tire)

2шт.

2

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining

16шт.

3

T103475

RIM

- adjustable, W10-24 (For 11.2 x 24 tire) 24 inch wheels

2шт.

4

1343042C1

DISC, WHEEL

DISC - 24 inch wheel

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheels

16шт.

6

1335135C1

WASHER

- flat, 17 x 33 x 5 mm 24 inch wheels

16шт.

7

1335134C1

NUT

- hex, 16 mm - 2.00 24 inch wheels

16шт.

8

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining 24 inch wheels

16шт.

3

T103477

RIM

- adjustable, W12-24 (For 13.6 x 24 tire) 24 inch wheels

2шт.

4

1343042C1

DISC, WHEEL

DISC - 24 inch wheel 24 inch wheels

2шт.

5

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm, 24" wheels

16шт.

6

1335135C1

WASHER

- flat, 17 x 33 x 5 mm 24 inch wheels

16шт.

7

1335134C1

NUT

- hex, 16 mm - 2.00 24 inch wheels

16шт.

8

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm - 2.50, wheel retaining 24 inch wheels

16шт.

9

1985737C1

SPACER

- for 80 inch tread 24 inch wheels

8шт.

10

828-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

24" wheels Hex, M16 x 120, 10.9

16шт.
