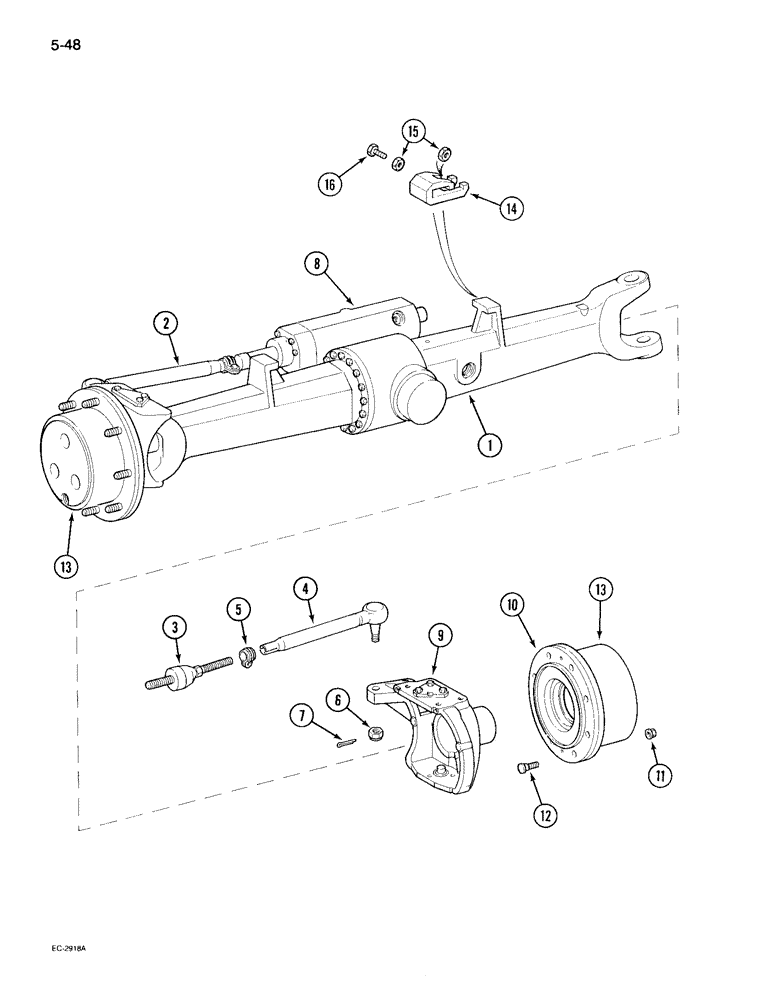

Запчасти Case IH 895 (5-48) - MFD FRONT AXLE ZF (05) - STEERING

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - front, APL-330 with self-locking differential, Includes: Refs. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - axle (See Fig. 5-52), Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, Includes: Refs. 3 - 7

2шт.

3

1968463C1

BALL JOINT

JOINT - axial

1шт.

4

1968464C1

TIE-ROD

JOINT ASSEMBLY - ball

1шт.

5

1968467C1

HOSE CLAMP

CLAMP - tie rod

1шт.

6

1968465C1

NUT

- hex slotted

1шт.

7

1968466C1

PIN, SPLIT (COTTER)

PIN - cotter

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY - steering (See Fig. 5-50)

1шт.

9

NSS

NOT SOLD SEPARAT

KNUCKLE ASSEMBLY - steering (See Fig. 5-58)

2шт.

10

81308C1

HUB

ASSEMBLY - wheel (See Fig. 5-58)

2шт.

11

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm, wheel mounting

16шт.

12

81317C1

STUD

- wheel mounting

16шт.

13

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - planetary (See Fig. 5-54)

2шт.

14

99775C1

STOP

- axle oscillation

2шт.

15

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

16

K602743

SCREW,1/4" - 20 x 1 1/2", Gr 5

- square head, 1/4 NC x 1-1/4 inch

2шт.
