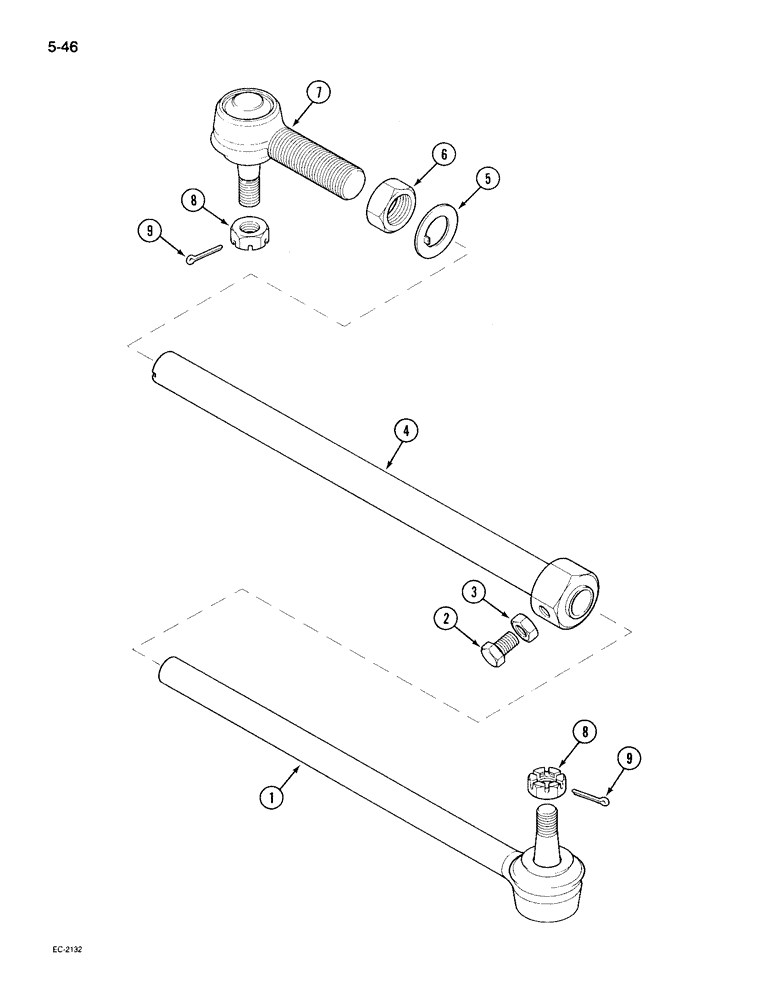

Запчасти Case IH 895 (5-46) - TIE RODS, ADJUSTABLE FRONT AXLES, STRAIGHT FRONT AXLES, 52 TO 82 INCH TRACK, HIGH SPINDLE (05) - STEERING

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, adjustable (Replaced by 1538016C1), Includes: Refs. 1 - 8

2шт.

1

3116406R3

BALL JOINT

SOCKET ASSEMBLY - outer (AP)

1шт.

1

1332805C2

BALL JOINT

SOCKET ASSEMBLY - outer (OMG), Serial Range: (Optional-3116406R3)

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set

1шт.

3

3116410R1

LOCK NUT

NUT - lock

1шт.

4

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD ASSEMBLY - intermediate and riser

1шт.

5

3116411R1

LOCK WASHER

- tab

1шт.

6

3116412R1

LOCK NUT

NUT - lock

1шт.

7

3116407R3

BALL JOINT

SOCKET ASSEMBLY - inner

1шт.

8

25-139

SLOTTED NUT,9/16"-18, G5

NUT - hex slotted, 9/16 inch NF

2шт.

9

32-816

COTTER PIN,1/8" x 1"

PIN split (Cotter), 1/8" x 1"

2шт.
